Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.
Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month
Description

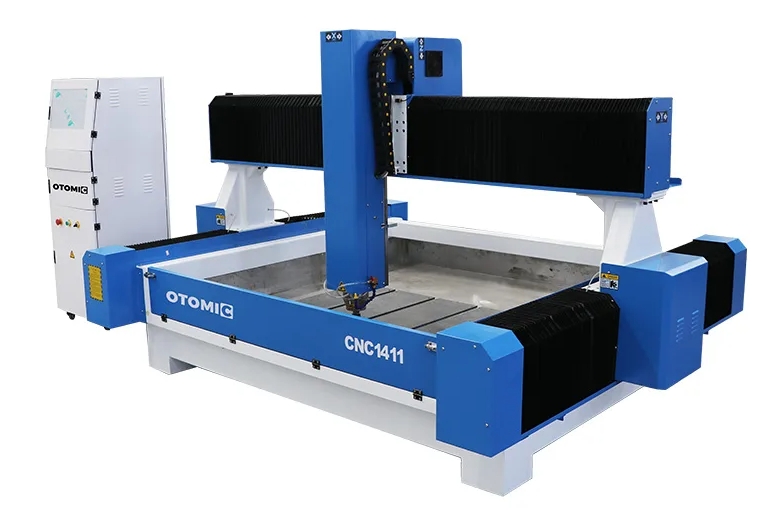

This powerful stone CNC router machine with a water cooling spindle has the advantages of high processing accuracy, fast processing speed and good cooling effect.
Features
Limit switch:It is an electrical switch used to limit the movement limit position of mechanical equipment. And it is a kind of safety device to protect the machine damage and the staff safety.

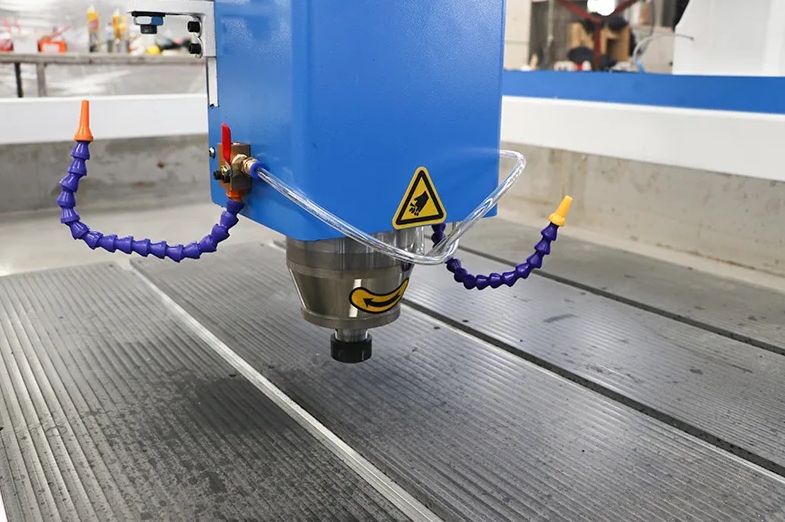

Powerful 6kw HQD water cooling spindle can perfect work for stone carving.
Customized working area can meet your perse job needs.
PM95A-3L control system is well suitable for processing stone.
Parameters
Descriptions | Parameters |
Working area | 1400*1100*500mm |
Voltage | AC380v, 3Ph, 50Hz |
Control system | PM95A-3L control system |
Spindle | 6kw HQD water cooling spindle |
Spindle speed | 6000-24000rpm |
Motor | 850W YASKAWA Servo motor |
Inverter | 7.5kw Delta inverter |
Guide | Taiwan PMI 30# square rail |
Lubrication system | Manual lubrication system |
Limit switch | Omron limit switch |
Sank | Two sprinkler pipes with two sanks |
Warranty guarantee | 12 months |
