Multi-head Stone CNC machine

Brand : Blue Elephant

Model : ELECNC-1815S

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Free professional machine operation training.

Supply Ability : 200 Sets per Month

Contact Now

Product Details

Description
This stone CNC computing device with multi-spindle and has a range of machining functions. Firstly, it can meet a range of work portions at the identical time, enhancing manufacturing efficiency. If you have a processing want for mass production, think about this machine.

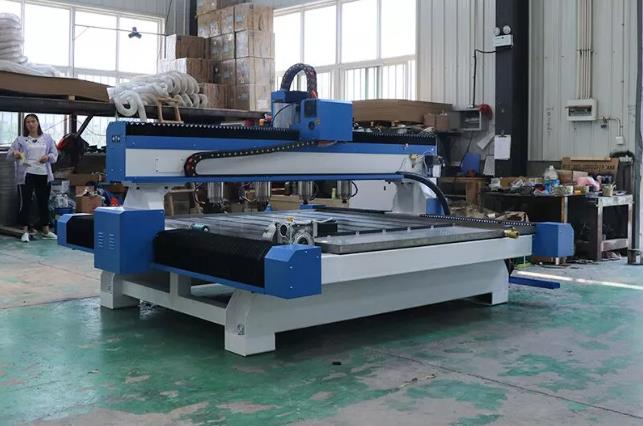

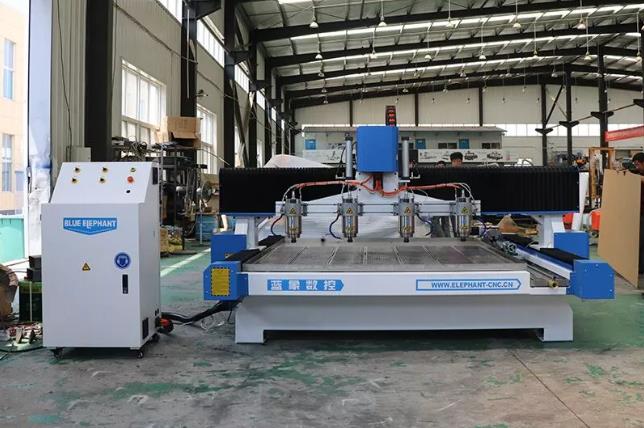

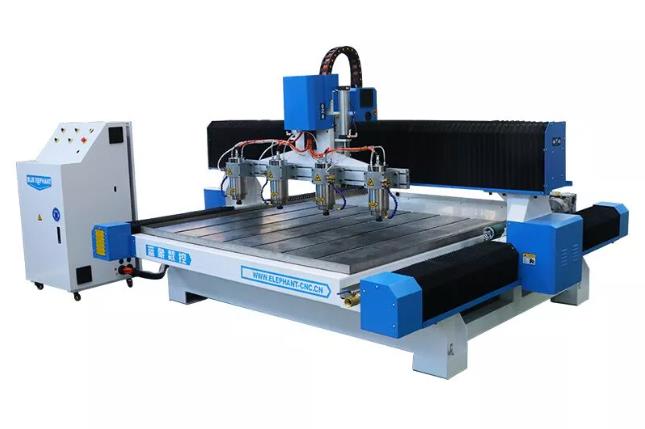

Multi-head Stone CNC machine

Model	ELECNC1815-4s Stone CNC Router
X,Y axis travel	1800x1500mm,option:15003000mm;20003000mm;2000*4000mm,etc
Z axis travel	200mm, option: 300mm, 400mm, 500mm, etc
Spindle type	3kw water cooling spindle, 24000RPM 4.5kw/ 55kw/ 6kw for optional
Inverter type	3.7kw Fuling inverter
Control system	Stepper motors and drivers
Driving system	Stepper motors and drivers
Machine structure	Professional stone cnc bed, with heavy duty body more thicker and stronger
Work table	slot working table, with steel water sink; Stainless steel sink for optional
Linear guide	Taiwan linear guide 20#
Transmission	XY axis: Germany Helical Rack and Pinion Z axis Taiwan TBI high precision ball screw

Features
1. Equipped with a counter pinnacle with a sink, the desktop is extra appropriate for machining work portions in the stone industry or in metal.
2. The water spray characteristic can minimize the put on on the spindle for the duration of processing, for this reason extending the lifestyles of the machine.
3. Adopting International imported company aspects like motor and driver, which make the computer have a longer carrier life.
4. This laptop can additionally be used in the woodworking industry, such as processing some hardwood and different materials.
