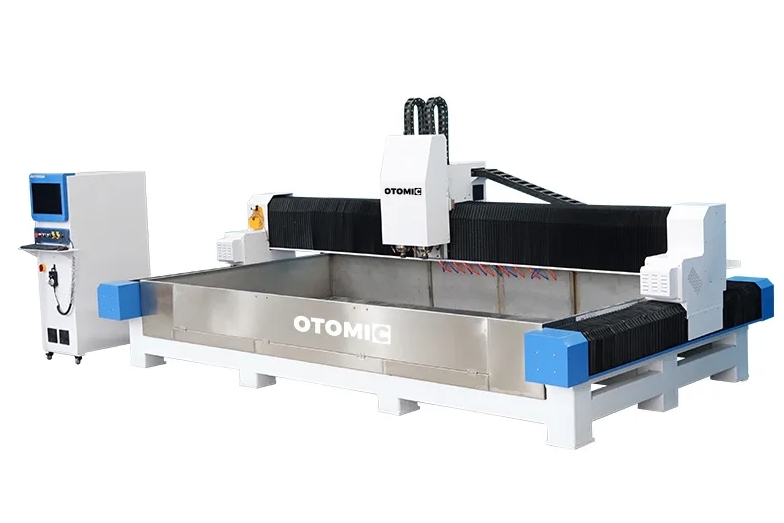

Economical Two-Process Granite Stone CNC Machine

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Description

This two-process stone CNC machining center has the advantages of low cost and high utilization. It has multiple functions and can realize stone countertop edging and engraving. And it is suitable for users who have unsaturated workload of countertop process.

Features

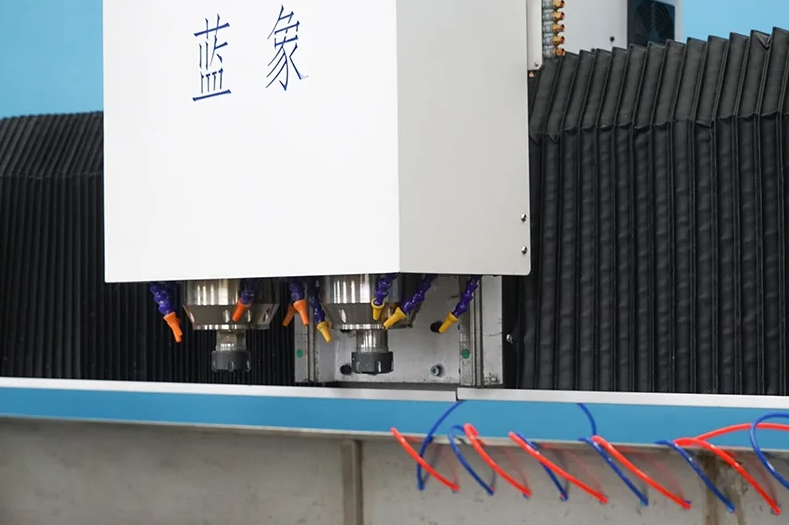

Two spindles can be automatically switched according to processing requirements, which reduces tool change time and wastes.
The edging function and engraving function of countertops can be switched in one-key operation, which is easy to operate.
It can realize fast tool change in 3 seconds, which will make the higher processing efficiency.

Parameters

Model	ELECNC1530
X,Y axis travel	15003000mm, option: 13002500mm; 21003000mm; 21004000mm, etc
Z axis travel	200mm, option: 300mm, 400mm，etc
Spindle type	5.5kw water cooling spindle*2
Inverter type	5.5kw inverter
The 4^thaxis	cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree
Control system	Weihong 95A-3L controller
Driving system	1.5kw servo motor and driver
Reducer	Japan Shimpo reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Stone Special working table
Positioning cylinder	4 pcs cylinder
Linear guide	Taiwan linear guide
Transmission	X,Y axis: Taiwan helical rack and pinion Z axis: Taiwan TBI high precision ball screw

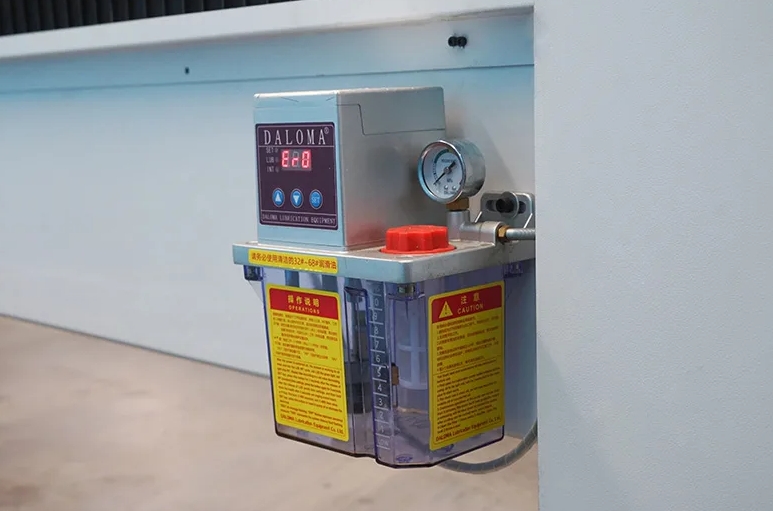

Lubrication system	automatic lubrication system
Tool calibration	Autotool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam / Aspire, etc
Command language	G Code & M Code
Traveling speed	60m/min
Working speed	0-30m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
