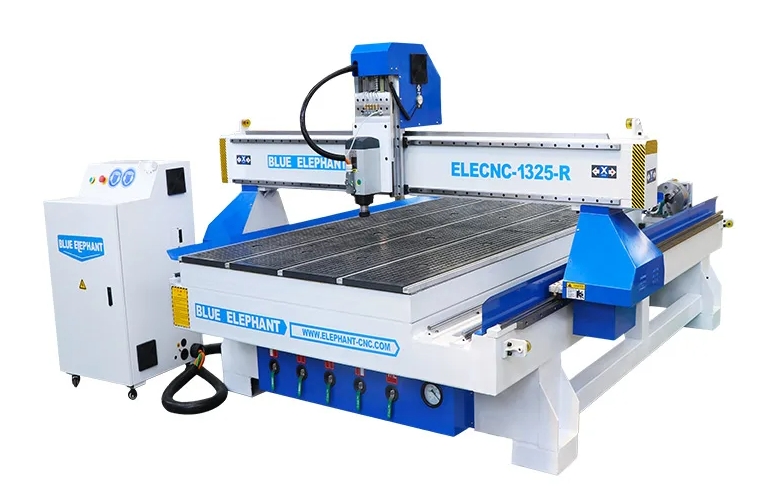

3 Axis CNC Router with 4th Rotary Lathe Side Embed for Furniture Cabinets Doors Making
Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.
Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month
DESCRIPTION
This rotary engraving machine is designed for processing complicated work pieces like 3D or 4D. Besides that it can be used in some furniture industry with the rotary device like stair railings, table and chair legs, Roman columns, etc.
FEATURES
With the heavy duty thicker and bigger welded steel tube frame, it makes the machine work more stably.
All accessories and parameters can be selected and customized according to the user’s processing requirements.
Adopting DSP control system and stepper motor driver system, which ensure the machine with a longer service life.
![3 Axis CNC Router with 4th Rotary Lathe Side Embed for Furniture Cabinets Doors Making]( "3 Axis CNC Router with 4th Rotary Lathe Side Embed for Furniture Cabinets Doors Making")
PARAMETER
| Model | ELECNC1325-R |
| X,Y axis travel | 1300x2500mm, Option: 1500*3000mm; 1600*3000mm, etc. |
| Z axis travel | 200mm, Option: 300mm, 400mm, etc. |

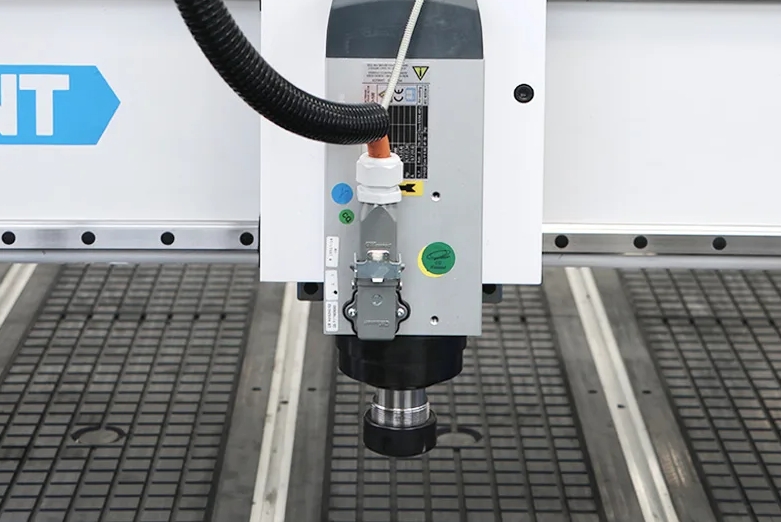

| Spindle type | 4.5kwair cooling spindle, ER25 |
| Inverter type | 5.5kw |

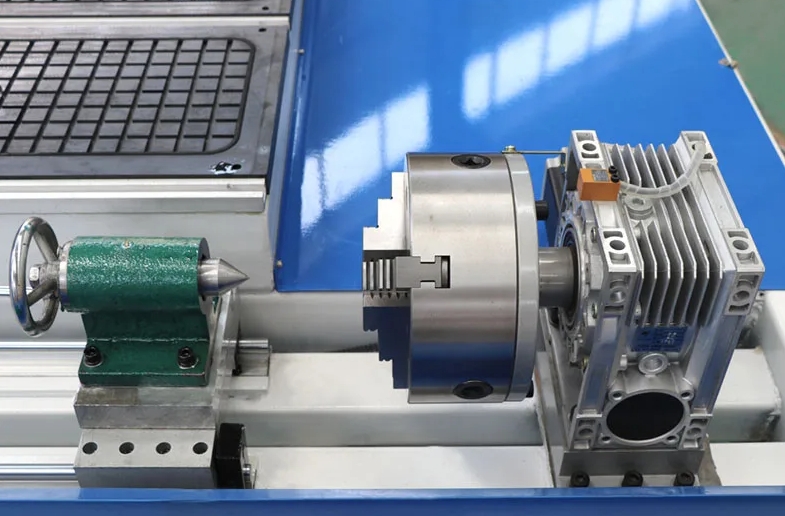

| Rotary device | 200mm diameter rotary device |
| Tool magazine | No tool magazine Option: linearor carousel type auto tool changer |
| Tool holder with collet | ER25 collet: φ4,φ6,1/8,1/2 |
| Control system | DSP B18 Option: Mach3; NC Studio |
| Driving system | Stepper FL118 motor and YAKO2811 drivers. Option: 750w Leadshine hybrid servo |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Vacuum & T-slot work table |
| Positioning cylinder | Optional: 7pieces(X2,Y3) |
| Linear guide | TaiwanLinear guide |

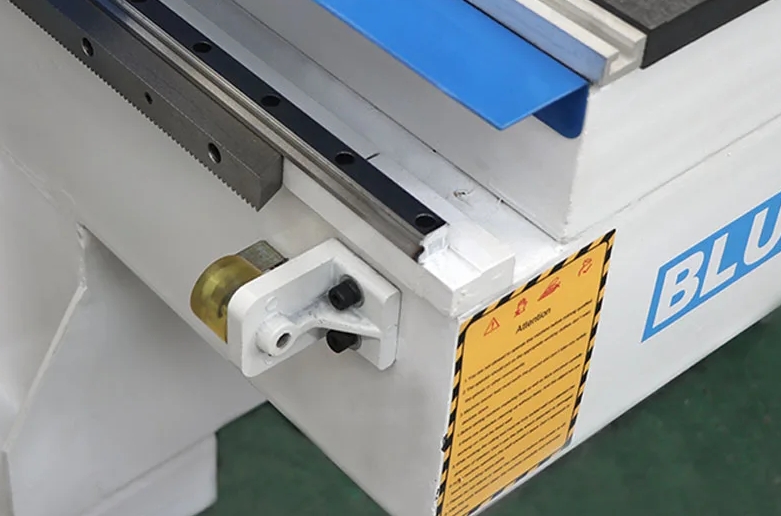

| Transmission | X,Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |

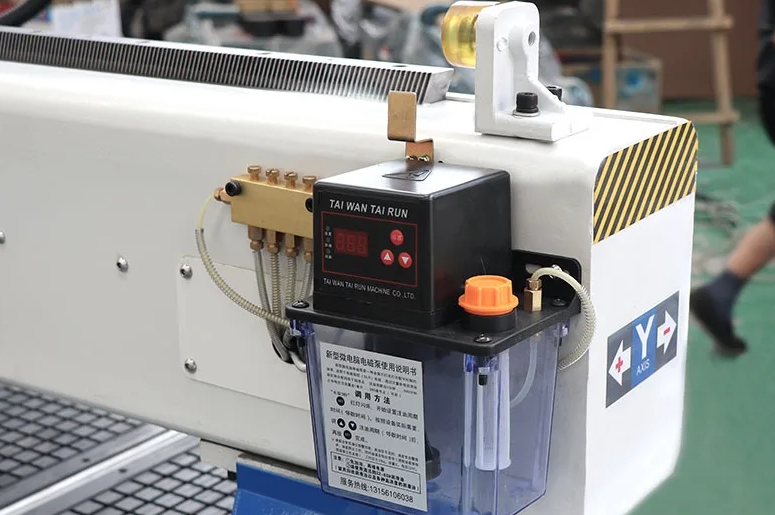

| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, U cancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
