Wood Panel MDF Nest-Cutting CNC Router with Labeling Machine, Drilling Bank, Slot Cutting Saw

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Video

DESCRIPTION

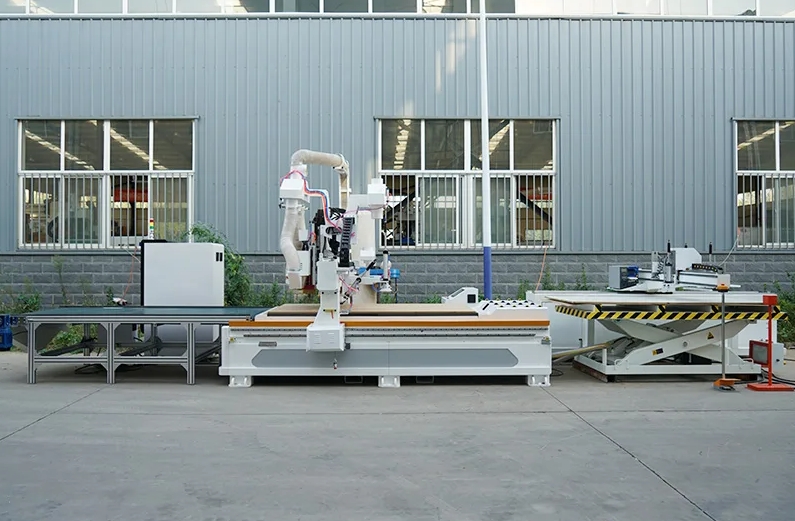

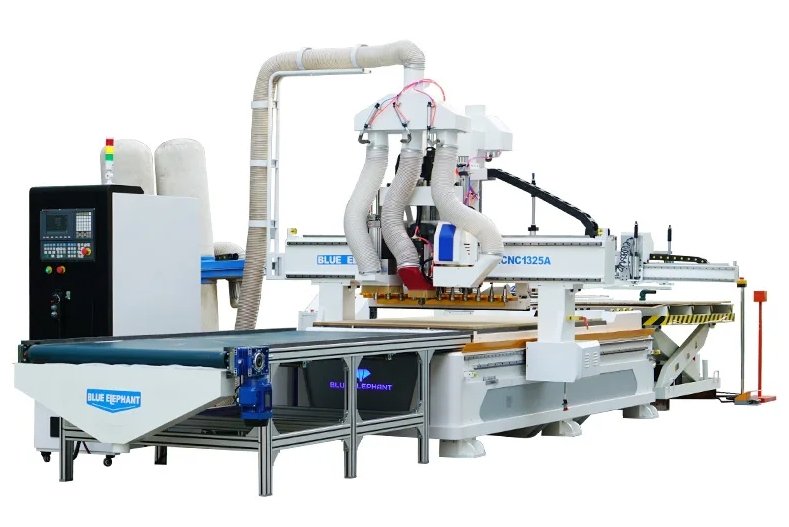

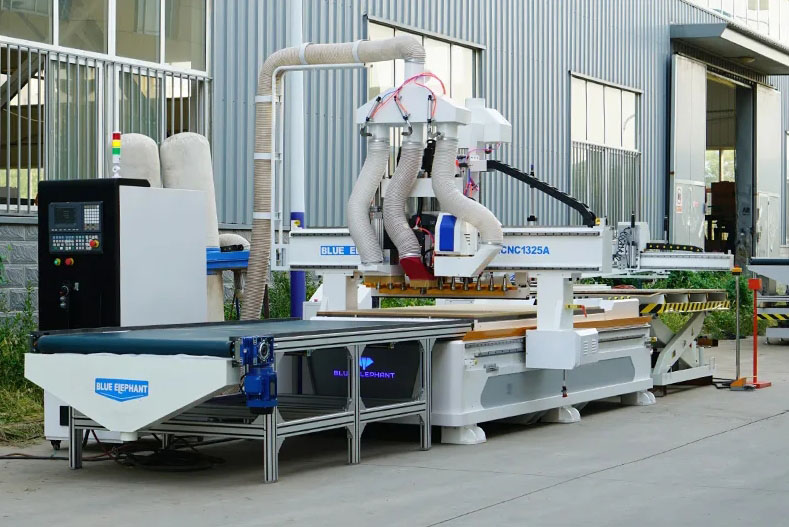

This 4×8 nesting CNC Machine is mainly used for door, cabinet making. And the automatic loading and unloading system and labeling function not only can save labor and time cost, but make your woodworking more efficient.

FEATURES

The spindle has the characteristics of high speed, good quality and high power.
The drilling head can drill holes for cabinet with higher efficiency.
The machine has 12 PCs tool storage，it can change tools with faster and higher efficiency.
With auto loading and unloading working table, it can improve the production efficiency of cabinets and panel furniture.

PARAMETER

Model	ELECNC 1325 ATC with Auto-loading and unloading
X,Y axis travel	1300x2500mm, option: 15003000mm; 21003000mm; 2100*4000mm, etc
Z axis travel	200mm
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw Delta
Drilling bank	Italy 5+4 vertical drills
Tool magazine	Linear type auto tool changerunder the Gantry Option: Carousel type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4,φ6,1/8,1/2
Control system	Taiwan SYNTEC controller
Driving system	850W Japan YASKAWA AC servo driverand 850w AC servo motor, 4 sets. Option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Vacuum work table
Positioning cylinder	5 pieces(X2,Y3)
Linear guide	Taiwan Linear guide 25mm
Transmission	X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, U cancam, Aspire, etc
Command language	G Code & M Code
Traveling speed	80m/ min
Working speed	0-25m/ min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6 MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
Other	Automatic loading and unloading platforms
