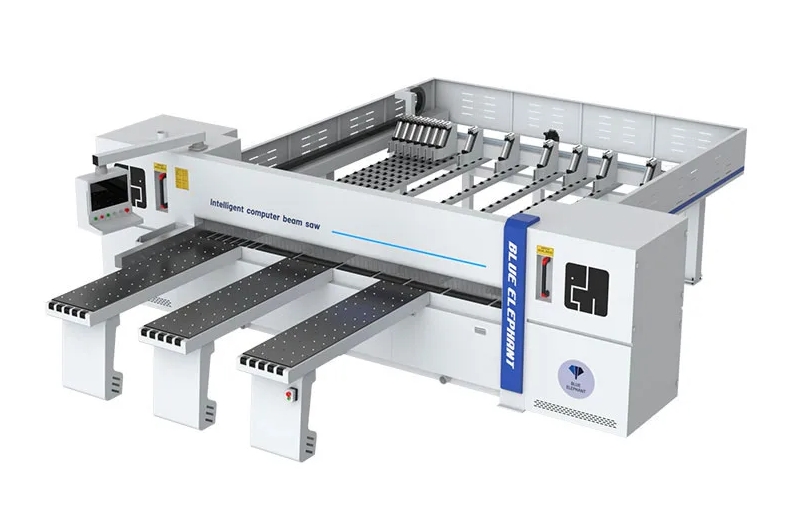

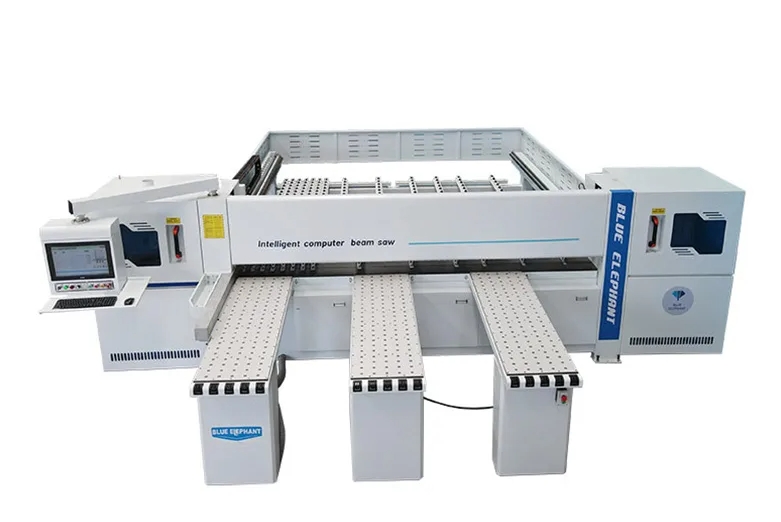

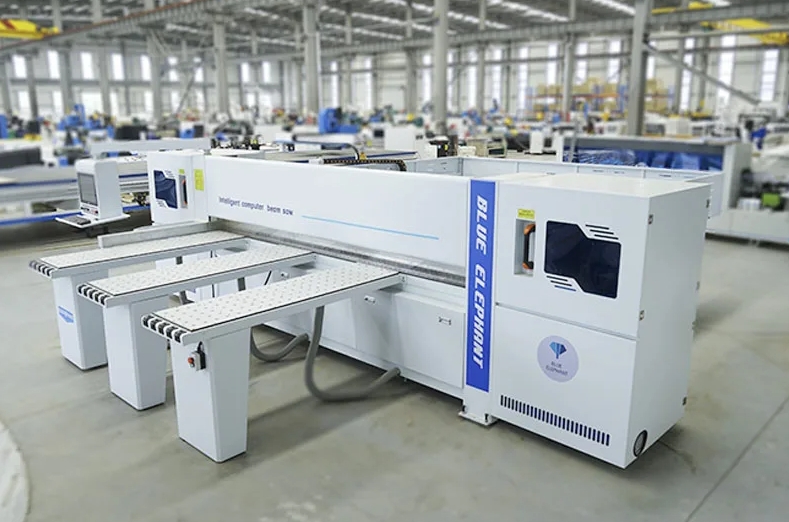

ELECNC-380 Standard CNC Horizontal Beam Saw 2700 – 3700mm

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Video

DESCRIPTION

It adopts the industrial computer control, which has an advanced but easy-to-operate man-machine interface.

FEATURES

This machine is good at cutting wooden panels in panel furniture manufacturing industry.
With a reliable control system, the interface is concise and easy to use.
The structure is welded by a high-density technique and annealing process to ensure working stability and longevity.
Key components and other electrical appliances or toggle component can sensure accuracy and reliability.

PARAMETER

Model	ELECNC-270/330/370
Cutting length	2700mm 3300mm 3700mm
Overall dimension	5400x5300x1800mm 5900x5800x1800mm 6400x6300x1800mm
Cutting thickness	100mm
Main saw blade diameter	350mm
Main saw blade revolving speed	4800rpm
Groove saw blade diameter	180mm
Groove saw blade revolving speed	6900rpm
Forward speed of carriage	100m/min
Backward speed of carriage	150m/min
Main saw motor	16kW
Groove saw motor	2.2kW
Auto feeding motor	2.0kW (AC, Servo)
High-press ventilating motor	3kW
Total power	23kW
Auto feeding speed	100m/min
Air pressure	5-7kg/cm2
Platform height	950mm
Control switch	Schneider
PLC	Fatek
Converter	Invt
Screen	Jikowi
Contactor	Schneider
Pneumatic elements	Hengtong
Solenoid valve	AirTac
Motor	Igarashi
Servo control system	Invt
Linear guide rail	SLM
