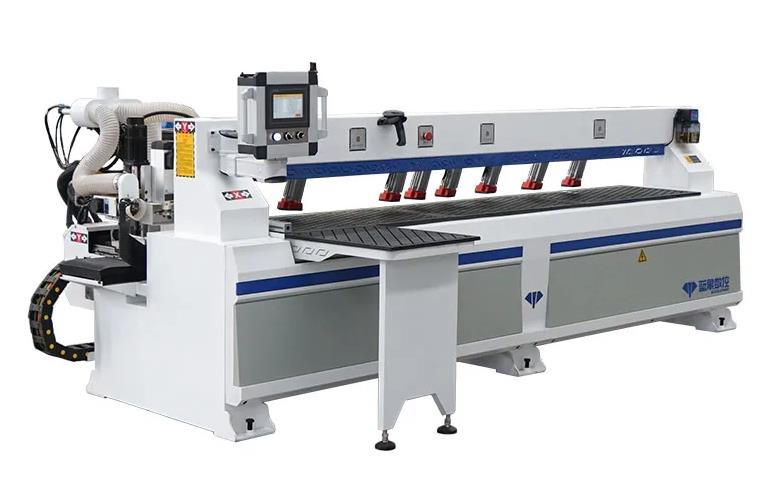

ELE300 Three-Head Side Hole CNC Boring Machine with Biscuit Connector Slot Cutter

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Video

Description

It is mainly used to solve the problem that the CNC nesting machine cannot punch or boring side holes, and the precision of ordinary pneumatic row drills is not high, and needs repeated positioning.

Feature

Support various docking furniture design production software with opening worktable port.
Without any software, it can directly blind play truly intelligent production.
Zero-based staff are qualified for operation after only one hour of professional training, which saving labor costs.

Parameters

Model	ELE300
Drilling spindle power	2.2kw
Saw spindle	2.2kw AKEMDE/JST spindle
Spindle speed	0-18000rpm
Idling speed	100m/min
Working speed	80m/min
Working travel	2800 mm
Height of table	750 mm
Drive and motor	0.75kW Dongling servo motor*3
Sensor	BANNER
Controller	Luolunchi dual system
Guild	#20 square rail
Rack	Taiwan JUELI
Screw	TBI
Electrical elements	Schneider Electric
Whole size	360012501300mm
Whole weight	1100kg
