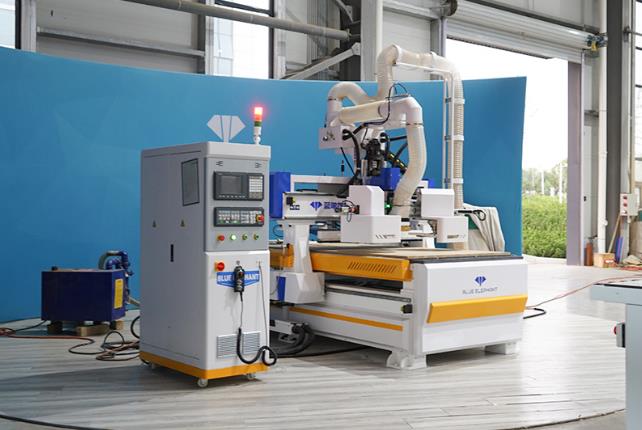

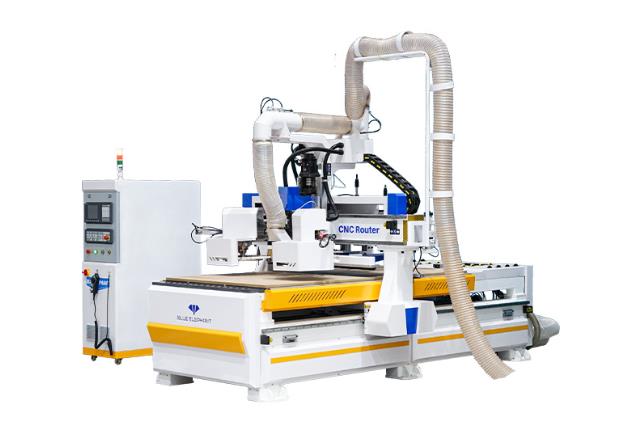

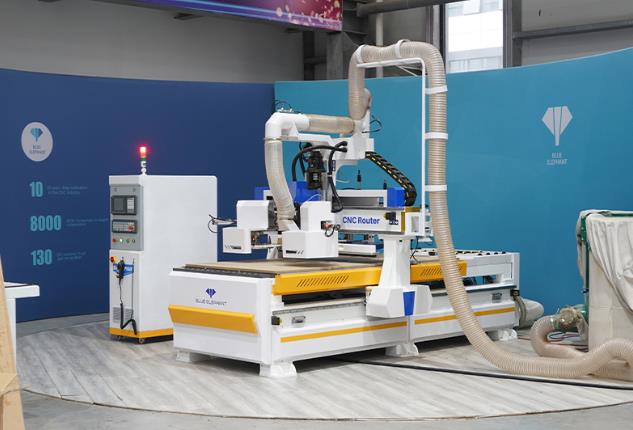

Ball Screw-driven ATC Nesting CNC Router
Brand : Blue Elephant
Model : ELECNC-1325ATC
Category : Nesting CNC Machine
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Free professional machine operation training.
Supply Ability : 200 Sets per Month
Description
This is a ball screw-driven nesting CNC router machine. With an ATC spindle and two carousel device magazines, it can whole many state-of-the-art procedures via altering equipment automatically. This no longer solely improves work effectivity however additionally saves labor costs. It is extensively used in slicing and engraving a variety of timber boards for panel furnishings making.
Model | ELECNC1325 ATC |
X,Y axis travel | 1220x2440mm |
Z axis travel | 200mm |
Spindle type | 9kW ATC air cooling spindle, ISO30, ER32 |
Inverter type | 11kW |
Tool magazine | two carousel tool changers with 32 tools in total |
Tool holder with collet | ISO30, ER32 collet: 4, 6, 1/8, 1/2 |
Control system | Taiwan SYNTEC 60WE |
Driving system | Y axis: 1.8KW YASKAWA servo |
X axis: 1.3KW YASKAWA servo | |
Z axis: 850W YASKAWA servo |
Features
1. All three axes undertake Taiwan grinding grade ball screw, which ensures exceptional precision and accuracy.
2.It is supplied with an auto feeding and pushing machine to faciliate the loading and unloading.
3.With two carousel device magazines, it can realise entire approaches through altering equipment automatically, and limit non-production time.
4. The information bar and positioning cylinder facilitate the positioning of the plate.
5. Vacuum worktable is divided into 6 zones, with sturdy absorption ability.
