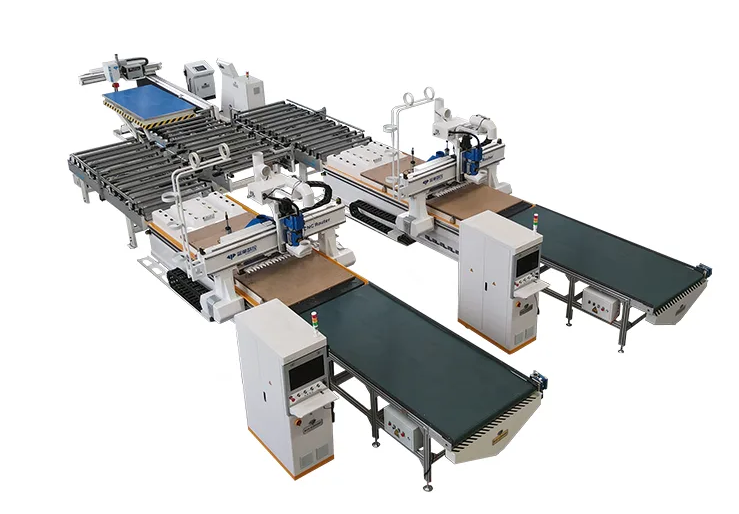

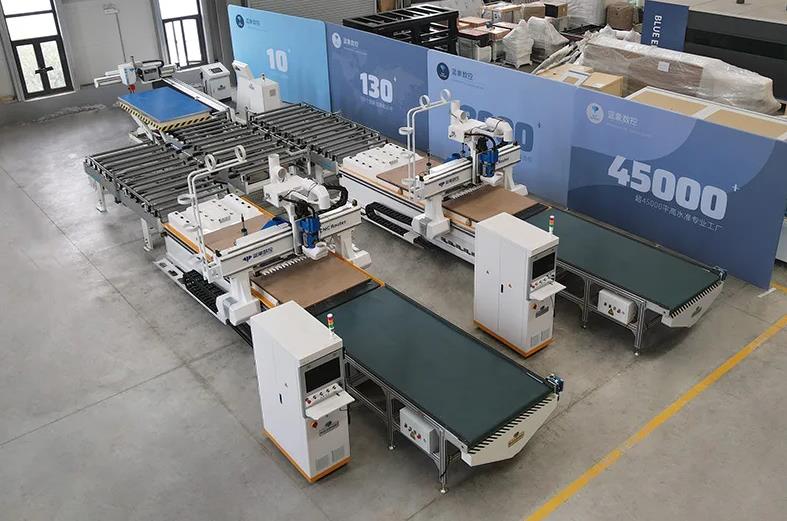

Auto Panel Label Nest-cutting CNC Router Machine Cell

Video

DESCRIPTION

This nesting cell is consists of a high-speed automatic labeling machine, two automatic CNC cutting centers, a power roller line, and a central control system. So you only need to place the plate on the elevator. Then the labeling machine will automatically label it. And the central control system will automatically assign it to the cutting center to complete the plate cutting work.

FEATURES

1. The central control system has the function of optimizing the cutting schedule, which saves time and reduces the waste of plates. At the same time, it has the function of on-site patching. It can process 240 sheets in 8 hours.
2. Simple operation. Just copy the processing program into the central control system and start the processing. There is no need to operate each machine.
3. The central control system automatically assigns the plates to the processing station. It effectively promots the sequential processing of the same batch of the same order and the same color plates.

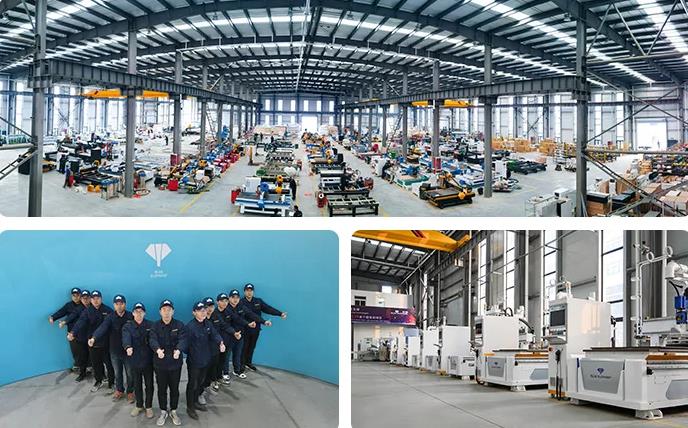

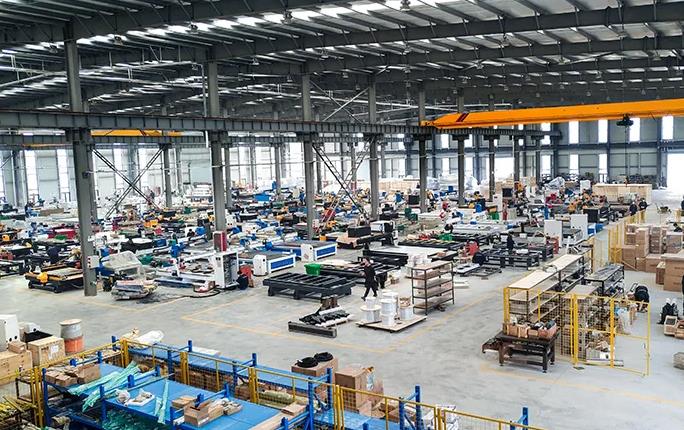

Production Facilit
