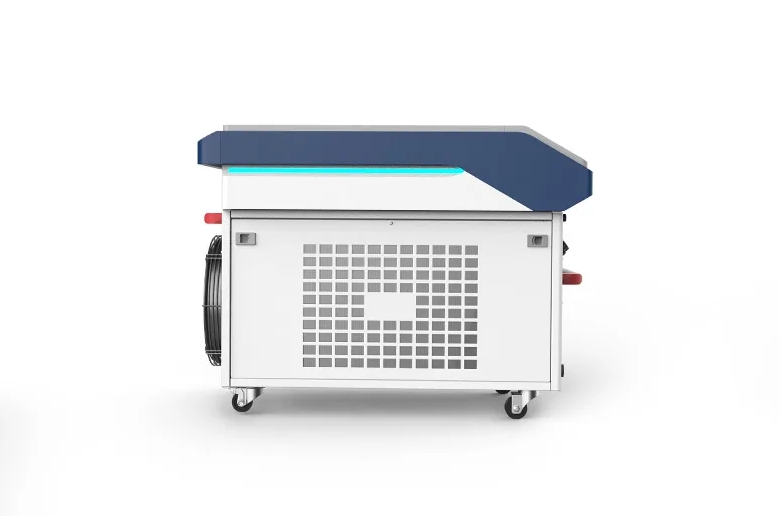

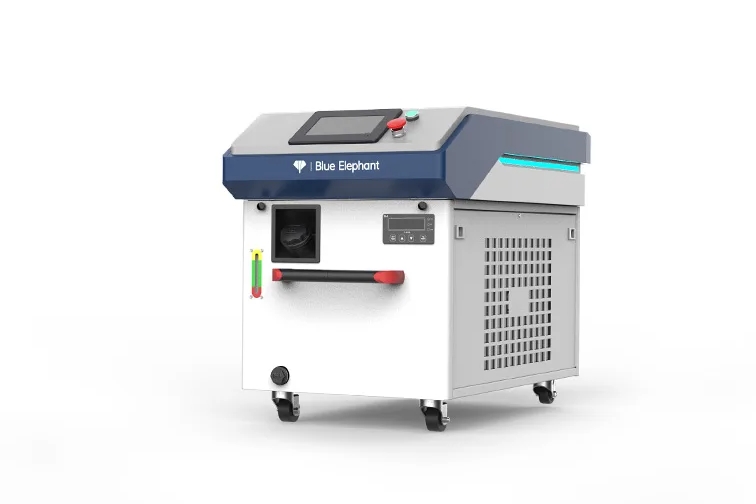

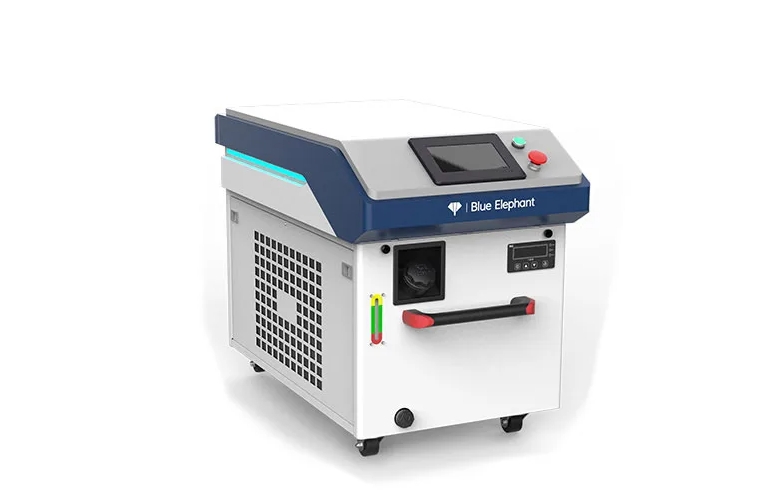

Portable Handheld Laser Cutting Welding Cleaning Machine 3 in 1

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month


Contact Now E-Mail Telephone WhatsApp
Product Details

Video

DESCRIPTION

This mini handheld laser welding machine is combind with three functions of laser cutting, laser cleaning and laser welding. At the same time, it also has an automatic detection system and a personalized process library, which is cost-effective and efficient.

FEATURES

1. The switching of laser welding, cleaning, cutting mode only needs to replace the cutting head, protective mirror, and system, which is easy to operate.
2. Multi-angle laser welding can be realized: flat angle welding, stitch welding, arc welding, etc.
3. Support multiple languages, such as English, Chinese, Spanish, Russian, etc.
4. Equipped with clips to conduct conduction and protect the safety of operators to a certain extent.

PARAMETER

Laser power1000W, 1500W, 2000W
Laser sourceFiber laser
Machine power5.7kw, 8.5kw, 11kw
Laser frequency50-20000 HZ
Laser wavelength1080nm
Cooling modeWater cooling
Cooling waterPurified/Distilled water
Fiber length10m
Auxiliary gasNitrogen/Hydrogen
Working temperature10°- 40°
Working humidity≤70%
Working modeDot/Circle
Weld penetration1.5mm, 2mm, 3mm
Welding abilityStainless steel: 4mm, 5mm
Carbon steel: 4mm, 5mm
Aluminum: 2mm, 3mm
