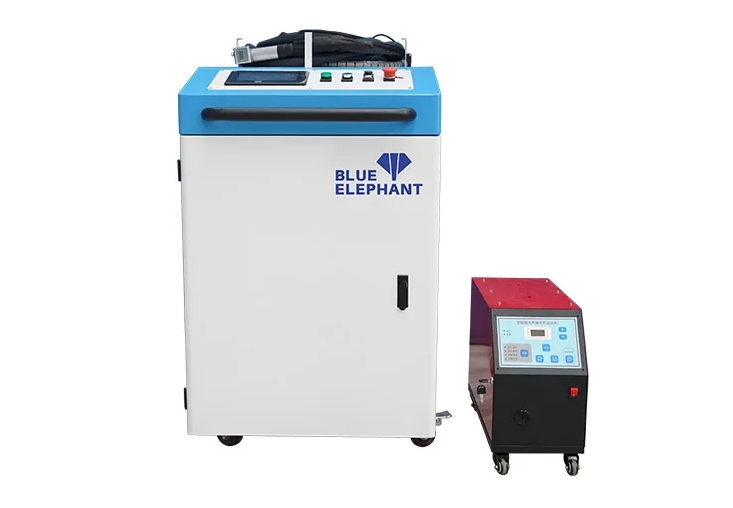

Handheld Laser Metal Welding Machine for Aluminum& Stainless Steel

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now

Product Details

LASER WELDING MACHINE VIDEO

DESCRIPTION

This is a non-automatic laser welding machine that can weld any position and any angle of the workpiece manually. With handheld mathod, the operation is flexible and convenient. It has high welding efficiency and small thermal impact. This machine can weld various metals including thin metal plates.

FEATURES

The hand-held welding head is light and flexible, which has the characteristics of simple and convenient operation.
Uses infrared positioning, which is used for welding head position verification.
It has the advantages of not easy to deform and polish.

PARAMETER

Machine model	XTW-1000
Max laser power	1000W
Laser source	Raycus
Beam quality	1.3m²
Laser wave length	1080±5nm
Welding head	XT brand with QBH

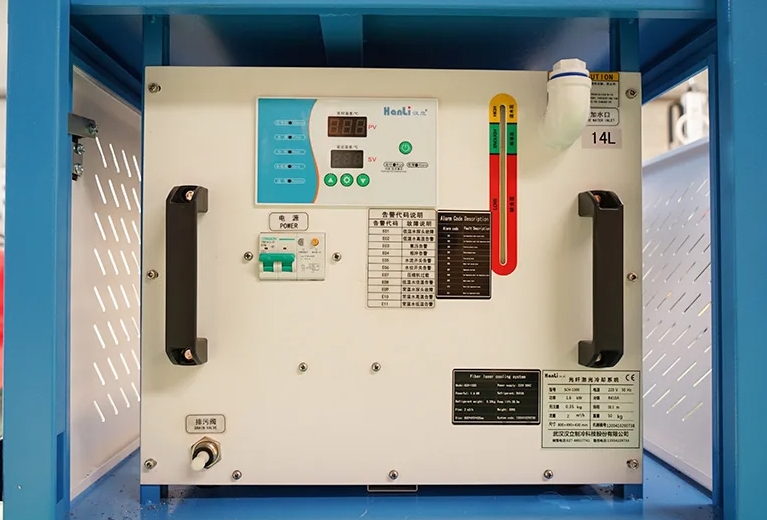

Water chiller	1.5P
Power required	220V 50Hz 1PH
Power consumption	7KW
Fiber optical length	8m
Stainless steel	Maximum 3mm
Iron	Maximum 3mm
Lifetime	100,000 hours, depending on actual use
