Fiber Laser Cutting Machine for Metal with Optional Exchange Platform

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Metal Laser Cutter Machine Video

Description

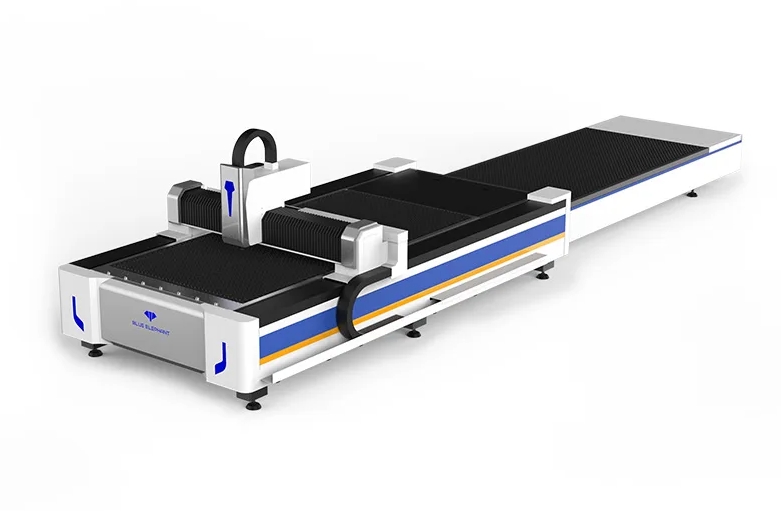

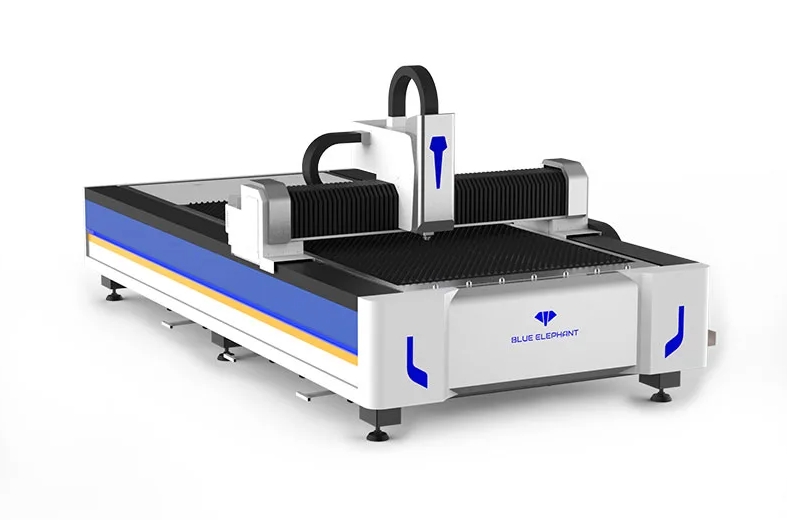

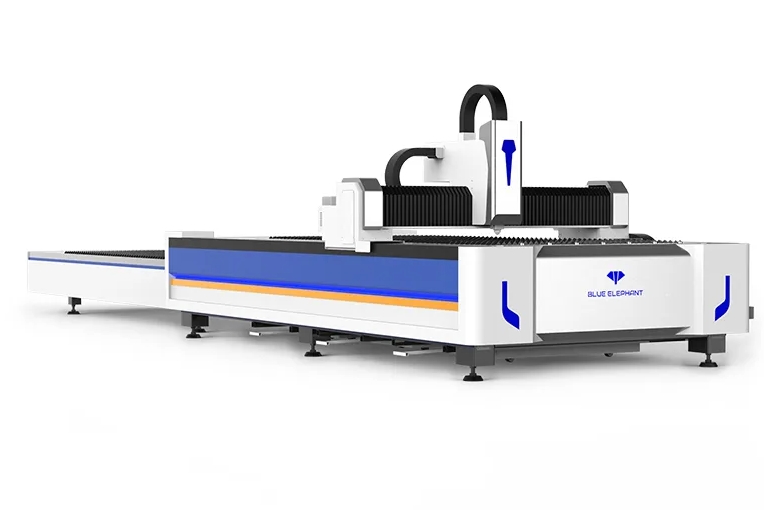

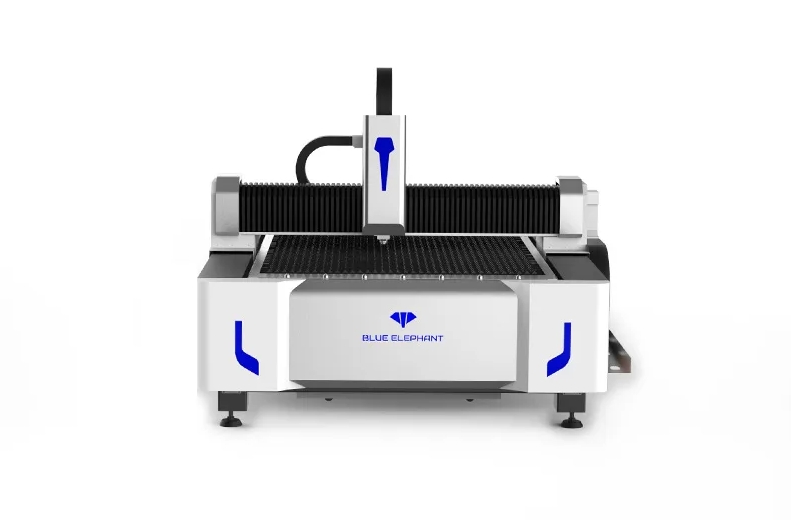

This sheet metal fiber laser cutting machine is designed with an exchange platform, which realizes simultaneous loading and unloading of workpieces. And it is a good choice for the metalworking factories with a large production volume.

Features

The platform exchange time is about 20-25s, which greatly improves work efficiency.
The aviation aluminum beam has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures the high-speed movement during processing.
Autofocus function reduces human interference. The focusing speed is 10m/min and repeatability is 50 microns.

Parameter

Model	ELECNC-1530E	ELECNC-1540E	ELECNC-2560E
Working area (mm)	1515*3030	1515*4050	2520*6050
Worktable bearing capacity	950kg	1250kg	2300kg
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm
Max. exchange time	25s	35s	40s
Max. acceleration	1.5G	1.5G	1.5G
Laser power	1kW – 6kW	1kW – 6kW	1kW – 6kW
Laser	Multiple options	Multiple options	Multiple options
Machine bed	Tube welding bed/Sheet welding bed	Tube welding bed/Sheet welding bed	Tube welding bed/Sheet welding bed
Max. running speed	140m/min	140m/min	140m/min
