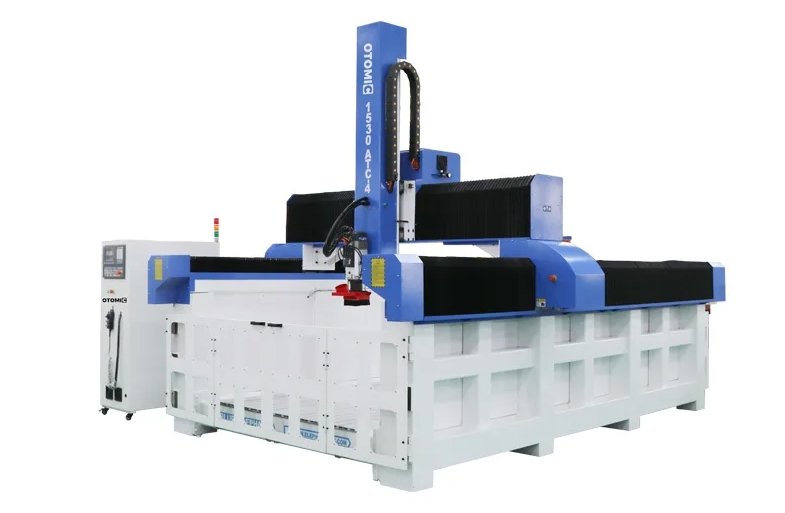

4 Axis CNC Router with ATC Spindle for Wood EPS Styrofoam 3D Mold/Model Making

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Video

Description

Like other Blue Elephant EPS CNC machines, this foam cutting machine is designed with high Z axis and heavy EPS machine structure. It has the advantages of high precision and excellent quality. In addition, it can be used for the high-end production of casting and sculpture industry.

FEATURES

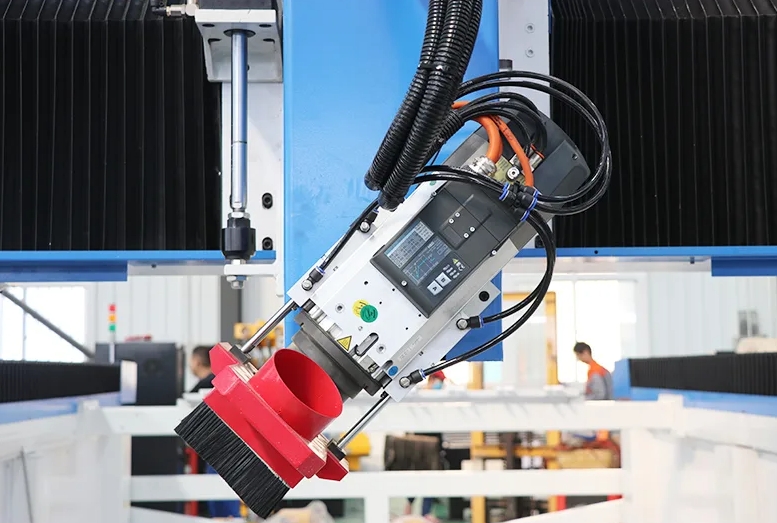

Equipped with an Italy 9.6kw ATC air cooling spindle, which is suitable for complex, heavy-duty, and long-term work.

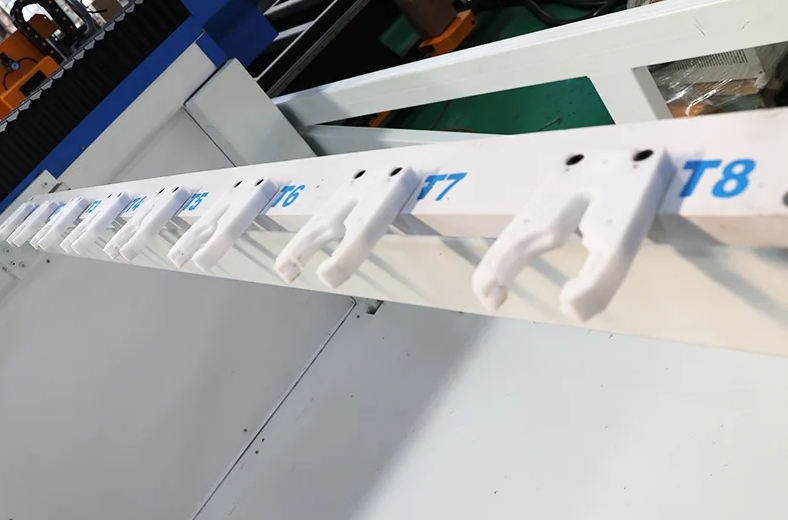

Adopts a linear automatic tool changer, it is safer and faster to change different tools without manual operation.
It is widely used to process and carve wood and styrofoam automotive, ship molds, GRG or GRC decorations, and architecture models.

Parameter

Model	ELECNC1530 EPS
X,Y axis travel	1500x3000mm, option: 13002500mm; 20003000mm; 2000*4000mm, etc
Z axis travel	1100mm, option:900mm, 1000mm, 1200mm, etc
Spindle type	Italy 9.6kw ATC air cooling spindle
Inverter type	11KW Delta inverter
The 4^thaxis	cycloidal pinwheel precision reducer, with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree
Tool magazine	Linear type auto tool changer 8pcs Option: Carouseltype auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2

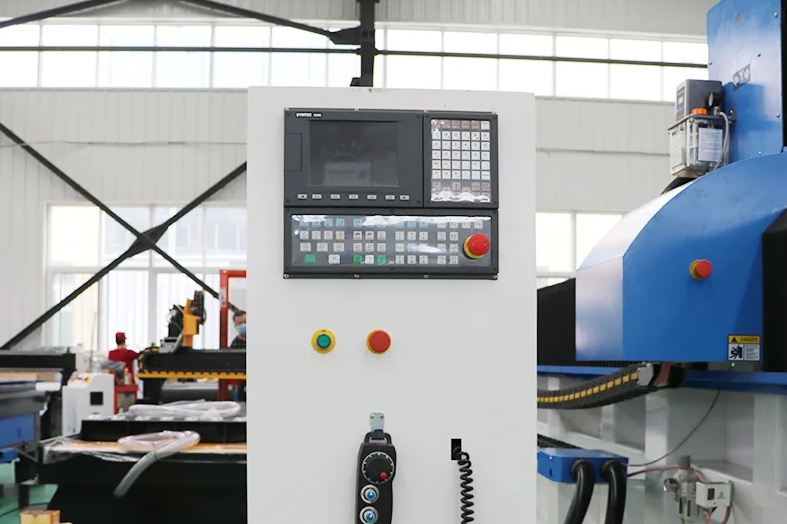

Control system	Taiwan Syntec control system
Driving system	Japan YASKAWA 850W servo motor and 1000W driver
Machine structure	EPS machine structure

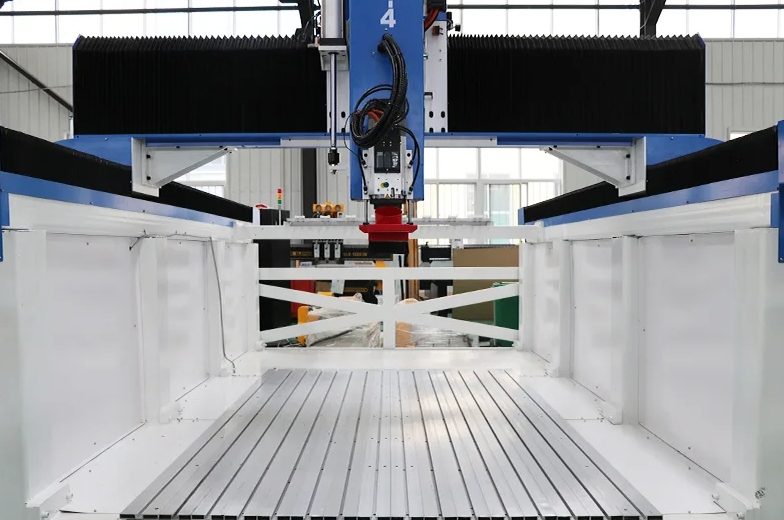

Work table	T-slot working table
Linear guide	Taiwan linear guide#30
Transmission	X Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, Powemill, etc
Command language	G Code & M Code
Traveling speed	60m/min
Working speed	0-20m/min
Re-positioning accuracy	±0.03mm
Working accuracy	±0.03mm
Working air pressure	0.8MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
