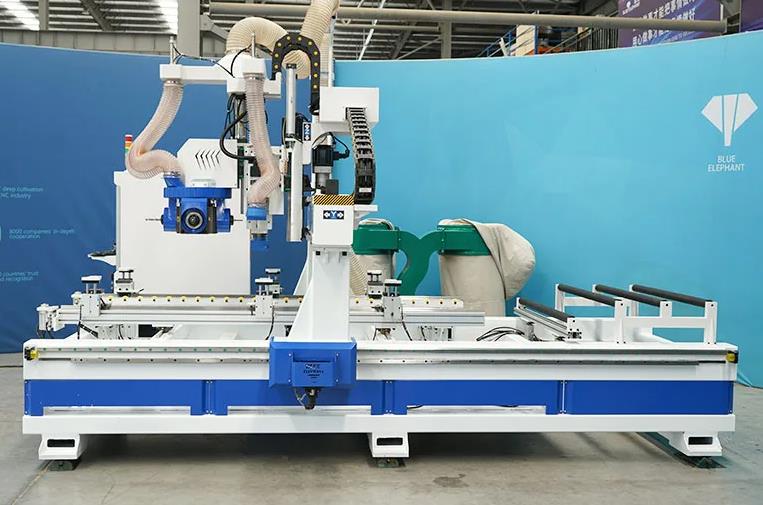

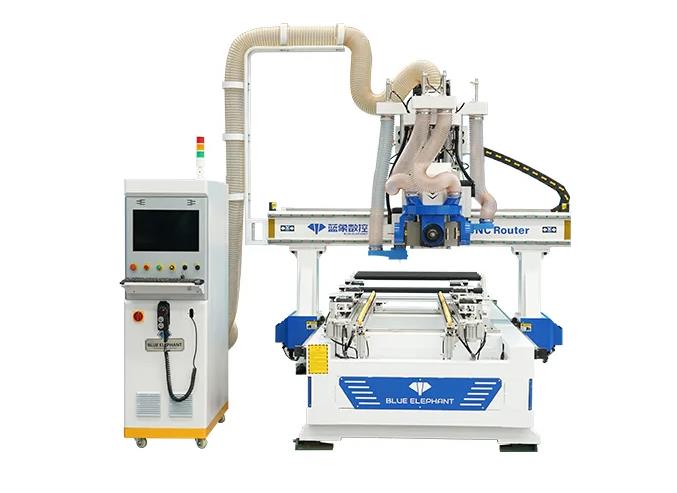

CNC Router Wood Boring Machine with Horizontal Spindle for All Door Holes Making

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

DESCRIPTION

The CNC router for door lock hole making is mainly used for processing wooden doors, door frames, door locks, door lock steps, hinge holes, craft holes, etc. Various technological processing can be completed by one-time feeding and positioning.

CNC Router Wood Boring Machine with Horizontal Spindle for All Door Holes Making

FEATURES

It has built-in CAM software, rich door lock hole shapes and modular operation, suitable for all kinds of door processing.
A worker can operate this machine after simple training, requiring no professional programming personnel.

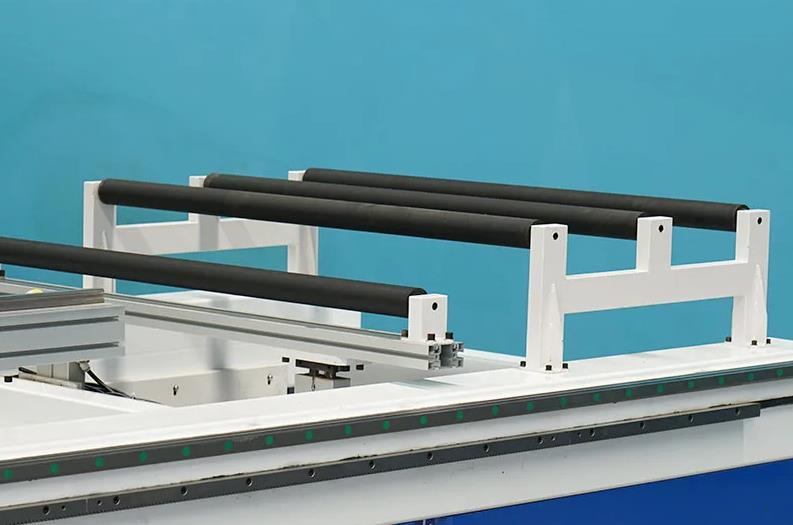

The auxiliary loading and unloading device helps reduce the labor intensity and improve work efficiency.
Four horizontal spindles can be switched freely and automatically, which can realize different processes in one operation.
It adopts a dedicated wooden door pressing plate worktable, which can secure the door firmly.
Precise positioning of drilling and grooving positions with high processing accuracy.
Taiwan linear guide rails, sliding blocks and high-quality ball screw ensure stable machine performance.

PARAMETER

Model	ELECNCM3 Door Lock Making Machine
Working area	Width: 500-1000mm x Length: 2500mm
Spindle	4 set Horizontal spindle (7.5KW+2.2KW*2), spindle can swing 360 degree horizontally, changing tools fast, can meet different processing need
Spindle	2 Vertical spindle (6KW HQD Air cooling spindle)
Fuling inverter	Famous brand with resistance.
Moving speed	X axis 60m/min
	Y axis 60m/min
	Z axis 20m/min
Motor	X, Y axis 1000W servo motor, Zaxis 1000W servo motor with Brake function to protect machine head, C axis 750W servo motor
Taiwan square rail #30	XYZ axis Taiwan Famous brand square rail #30, can improve high precision, smooth transmission, fast speed, low noise, and it has 10 times longer life than normal
X, Y axis Helical rack transmission	Imported 2M helical rack transmission, big loading capacity, very powerful for machine, long lifetime
Z axis Ball screw transmission	3210, Accurate precision, smooth transmission.
Control system	Professional door lock control system, with CAM software, lots of door lock shape, modular operation, can adjust the size directly, suitable for all kinds of door processing
Reducer	Japan Shimpo reducer for XY axis
Reducer	RV reducer for C axis which is usually used in Robot, Large transmission ratio range, long life, stable accuracy, high efficiency, stable transmission

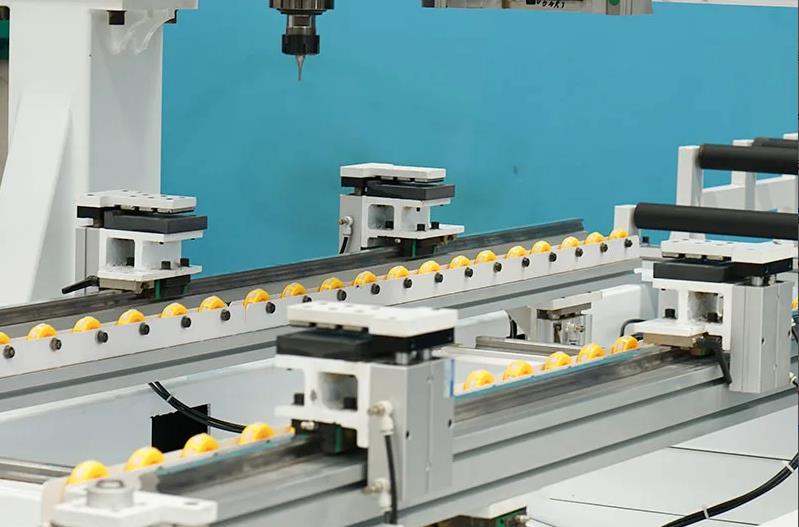

Position adjustable pneumatic clamp	Special wooden door pressing plate to fix the table top with high fixing precision, don’t need vacuum pump, save power.
France Schneider electrical parts	France Schneider brand with CE in good quality, long life time
Working pressure	0.7-0.8Mpa
Machine total power	15KW+ (Option: 5.5kw Dust collector)
