4×8 ATC CNC Machine with Horizontal Spindle & PTP Table for Furniture Cabibets Doors

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

DESCRIPTION

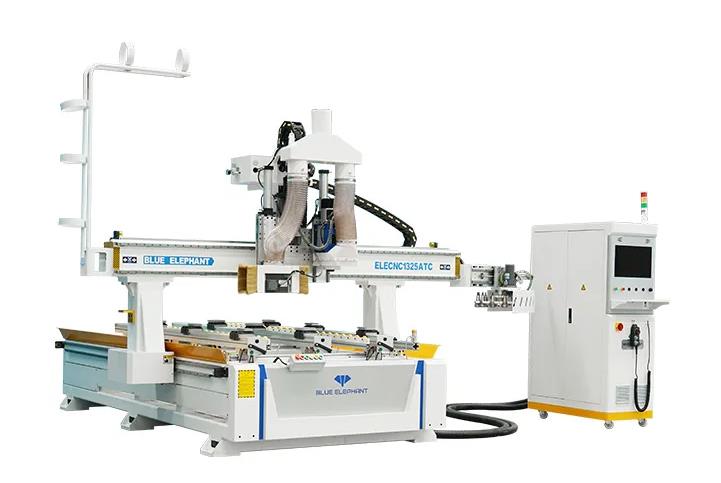

This is a new arrival ATC CNC machine specially designed for furniture industry. Equipped with the PTP worktable and vertical and horizontal spindles can better process the side and surface of the material.

4×8 ATC CNC Machine with Horizontal Spindle & PTP Table for Furniture Cabibets Doors

FEATURES

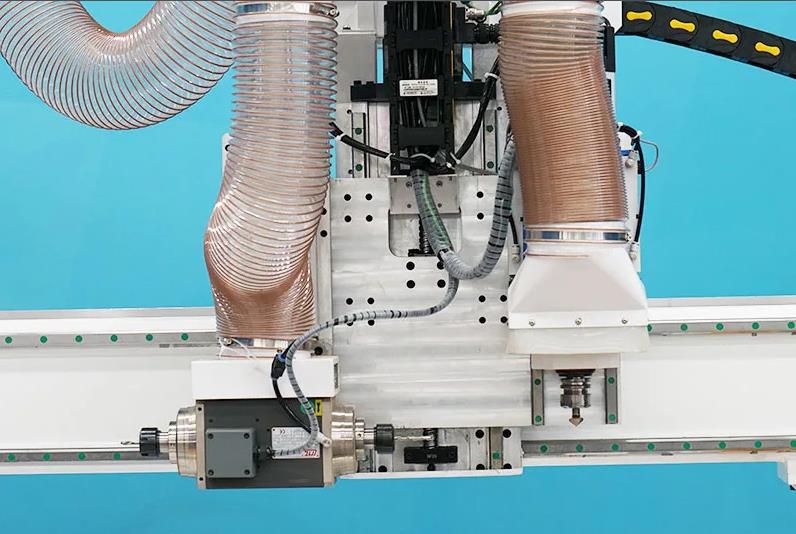

1. With vertical and horizontal spindles, it is very suitable for drilling door lock holes and hinge processing.

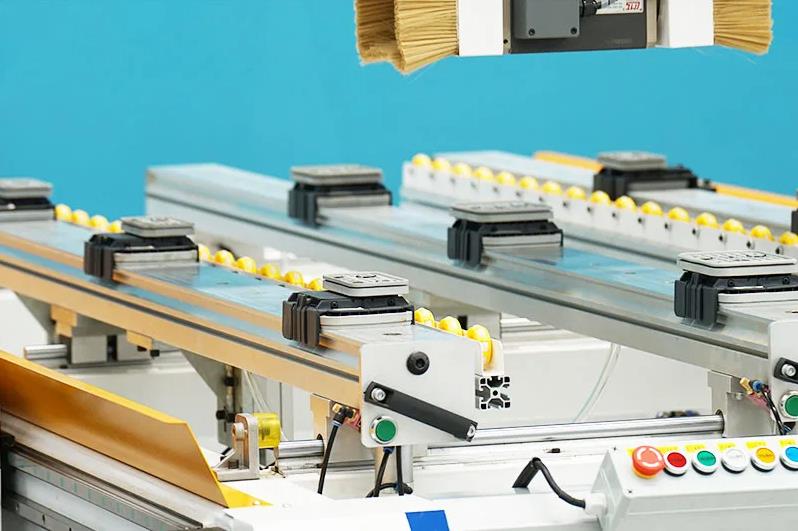

2. The PTP working table is used together with movable suction cups, which can improve the adsorption force.

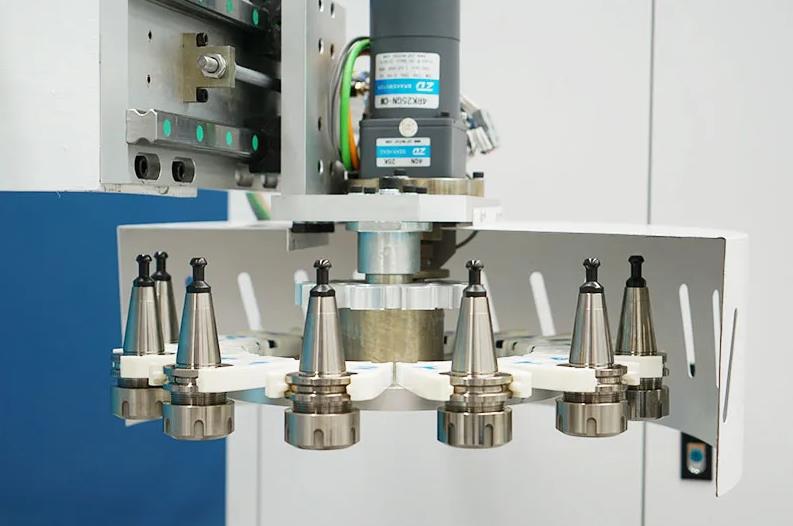

3. Designed with a carousel tool magazine, it can fast and automatically change different tools to cut, carve, and drill wood panels.

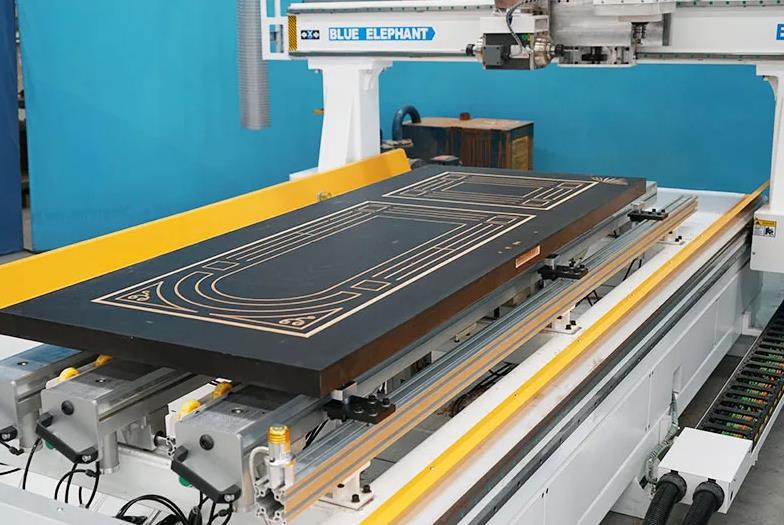

4. Adopts a movable vacuum table, it can realize loading and unloading at the same time.

4×8 ATC CNC Machine with Horizontal Spindle & PTP Table for Furniture Cabibets Doors

PARAMETER

Model	ELECNC1325ATC
X,Y axis travel	1300x2500mm, option: 15003000mm, 21003000mm, 2100*4000mm, etc.
Z axis travel	300mm, option: 400mm, 500mm, 600mm,etc.
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw
Tool magazine	Linear type auto tool changer Option: Carousel type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC /LNC controller, option: Ncstudio
Driving system	1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo
Horizontal spindle	Included, 3.5KW, 5.5kw, 7.5KW, ect.
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	PTP Working table
Positioning cylinder	5 pieces (X2, Y3)
Linear guide	Taiwan Linear guide with dust proof
Transmission	X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc.
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
