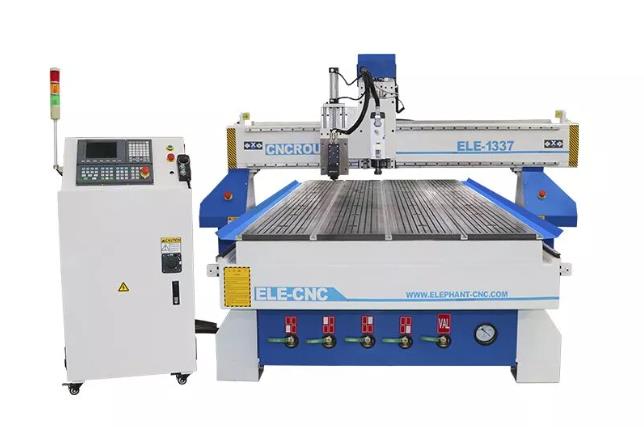

Digital Fabric Cutting Machine

Brand : Blue Elephant

Model : ELECNC-1337

Category : Digital Cutting Machine

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Free professional machine operation training.

Supply Ability : 200 Sets per Month

Contact Now E-Mail Telephone WhatsApp

Product Details

Description
This CNC Oscillating Knife Cutting Machine can reduce smooth substances such as leather, Cardboard, Rubber, etc. CNC knife slicing is safer, with no warmness and smock generating. This desktop is additionally appropriate at woodworking such as woodcutting and wooden carving, the identical as three axis CNC router.

Model	ELECNC1337
X,Y axis travel	1300x3700mm,optional: 1300250mm,15003000mm;2100*3000mm, etc
Z axis travel	200mm, optional: 300mm, 400mm, 500mm, 600mm, etc.
Spindle type	3kw Italian HSD air cooling spindle, 18000rpm
Inverter type	3.7kw
Oscillation knife	Germany EOT-3 oscillation tangential knife
Control system	Taiwan SYNTEC controller
Driving system	Servo motor and driver
Reducer	Japan Shimpo reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Lubrication system	1.5L automatic lubrication system
Tool calibration	Tool sensor calibration

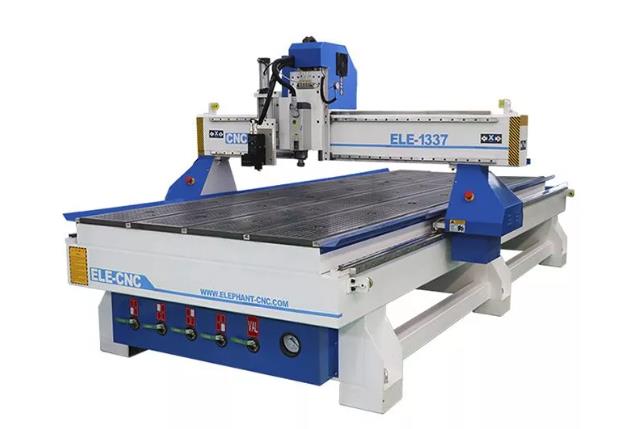

Digital Fabric Cutting Machine

Features
1. Oscillating Knife Cutter computing device works with the Taiwan SYNTEC manage machine with a 1.4m manage box, helps EOT-3 with a CNC router;
2. EOT-3 oscillating knife head, imported from Germany;
3. HSD air cooling spindle can technique wood, plywood, acrylic, gentle metal; EOT-3 oscillating knife can system foam;
4. The working measurement can be an increase, taking 2050 Oscillating Knife CNC Cutting Machine or ELECNC-2030 CNC Oscillating Knife Cutting Machine for example;
5. Please word that all the specs can be made and custom-made in accordance to customers’ requirements. Talking ELECNC-2030 CNC Router with Oscillating Knife for instance
