5x10ft 3 Axis CNC Wood Router with Vacuum Table

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

DESCRIPTION

It is one of the latest and the most popular 3-axis woodworking machine of Blue Elephant. With the lower cost and easier operation,1530 CNC wood engraving machine has been widely used in the woodworking industry and furniture industry.

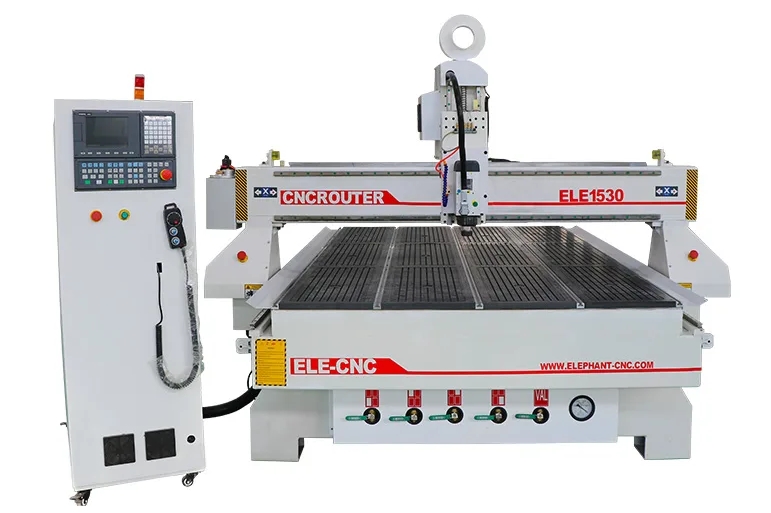

5x10ft 3 Axis CNC Wood Router with Vacuum Table

FEATURES

With the 1500*3000mm or 5×10ft aluminum& vacuum working table, which can save time for fixing materials and improve work efficiency.
Japan YASKAWA servo system, it has the advantages of higher precision and big torque.
Adopting heavy duty body with quenching treatment, it will prolong the machine using time and become more durable.

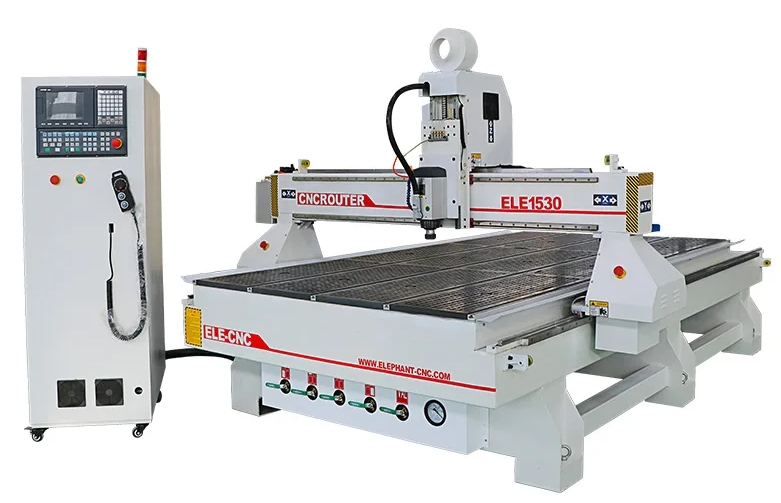

5x10ft 3 Axis CNC Wood Router with Vacuum Table

PARAMETER

Model	ELECNC1530 3Axis CNC Router
X,Y axis travel	1500x3000mm, option: 13002500mm; 20003000mm; 2100*4000mm, etc
Z axis travel	200mm, option: 300mm, 400mm

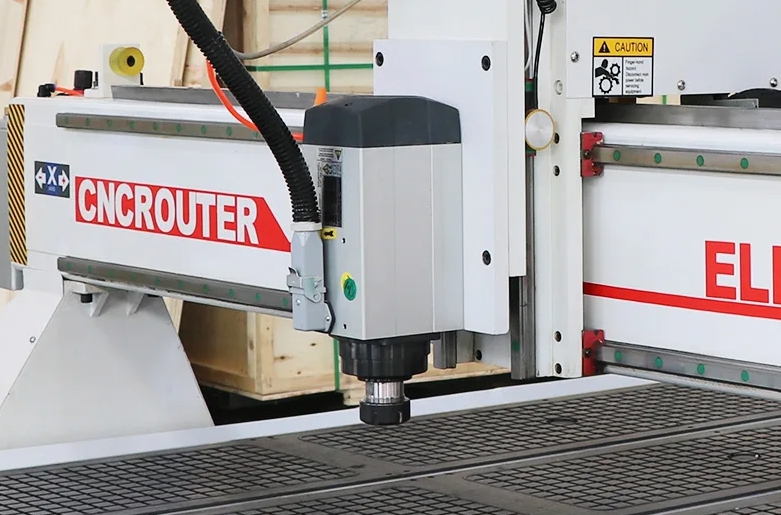

Spindle type	4.5kw Italy HSD aircooling spindle, ER32
Inverter type	5.5kw Delta inverter
Control system	Syntec 60WE Controller system
Driving system	850W Yaskawa servo motor with 1KW Yaskawa driver
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum working table
Linear guide	PMI linear guide
Transmission	X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw
Lubrication system	Manual lubrication system
Tool calibration	Manual tool sensor
Cables	Germany Igus cables with CE, UL certificate

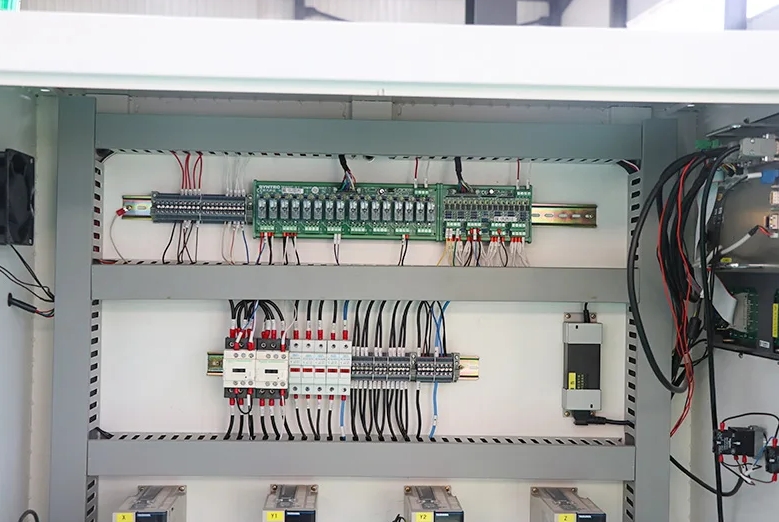

Controller box	Independent controller box
Compatible software	Artcam, Aspire, etc
Command language	G Code
Traveling speed	60m/min
Working speed	0-30m/min
Re-positioning accuracy	±0.05mm
Working accuracy	±0.05mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
