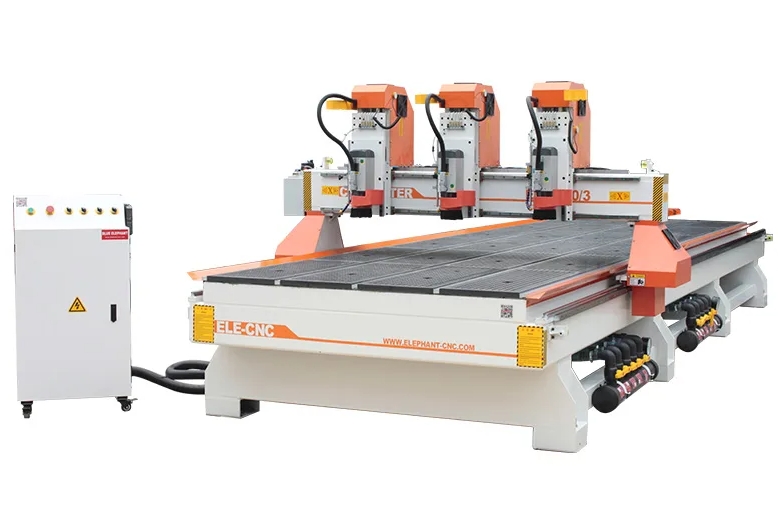

3-Spindle CNC Wood Router Machine
Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.
Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month
DESCRIPTION

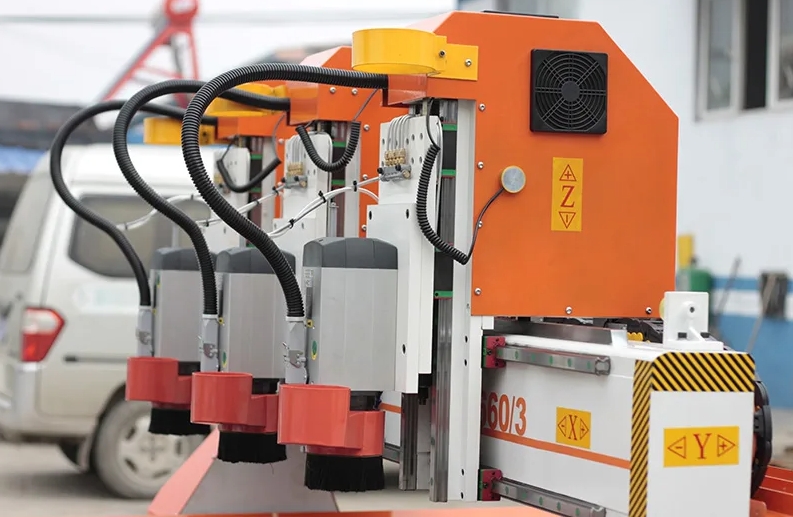

Three spindles of this multi head CNC router machine can work simultaneously, so the working efficiency can be greatly improved. In addition, the distance between the spindle is fixed, very suitable for handling symmetrical patterns and identical samples.
FEATURES
With three heads, it can work alternately, which saves a lot of time and manpower.
It is can process butch production for the big size working table.
The oil mist cooling sprayer system is better for cooling tools while processing soft metal like aluminum.
You can customize all specifications as you want.
PARAMETER
| Model | ELECNC1660-3S |
| X,Y axis travel | 1600x6000mm, option: 1300*2500mm; 1500*3000mm; 2100*3000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 3*4.5kw HSD air cooling spindle, ER32 |
| Inverter type | 5.5kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP A11 controller, option：Ncstudio, SYNTEC/LNC |
| Driving system | 750w Panasonic servo motors and drivers, 8 sets. Option: 1kw Taiwan Syntec servo, 1kw Japan YASKAWA servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |

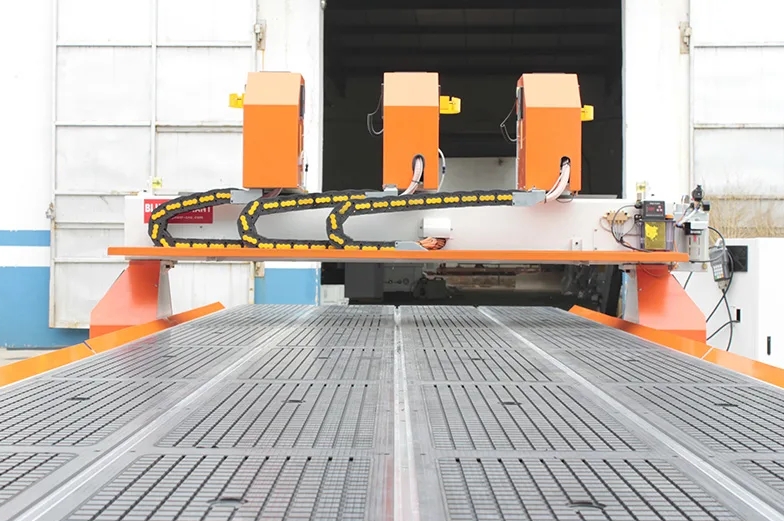

| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces(X2,Y3) |
| Linear guide | TaiwanLinear guide with dust proof |
| Transmission | X,Y axis: Taiwan /Germany helical rack and pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manuel tool sensor calibration |
| Cables | Germany Igus cables with CE, UL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
