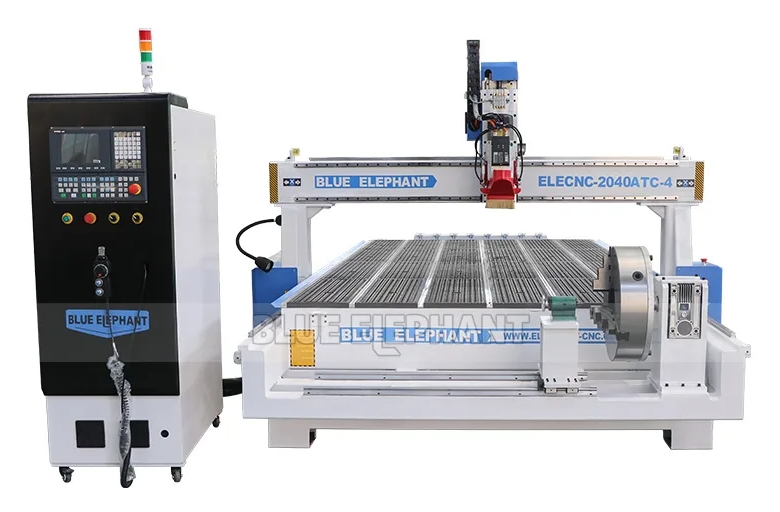

3 Axis CNC Router with ATC Spindle and Front Lathe for Wood Furniture

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Features:

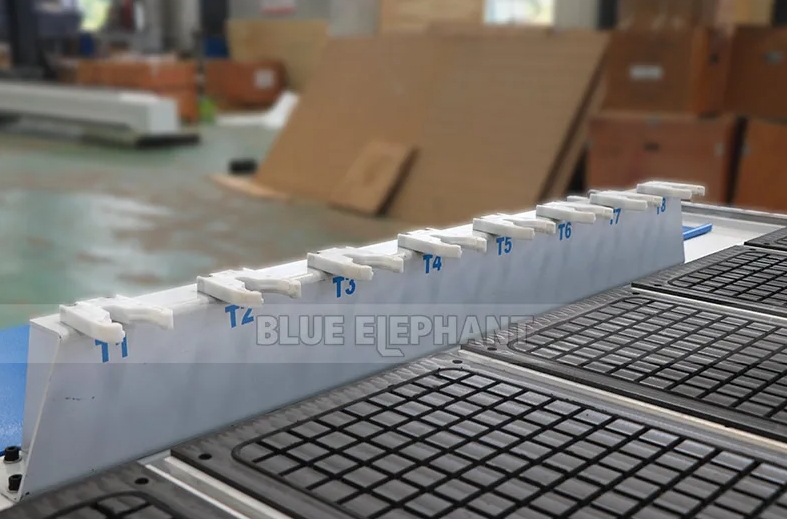

With linear tool changer equipped with eight tools, it can realize automatic tool change within 12 seconds, greatly improving work efficiency.
Adopting Taiwan SYNTEC control system which is the best-selling ATC system and is favored by customers in the US and Europe.
Using Japan Yaskawa servo motor and Z-axis with brake function, which make the machine have a higher precision and faster speed.

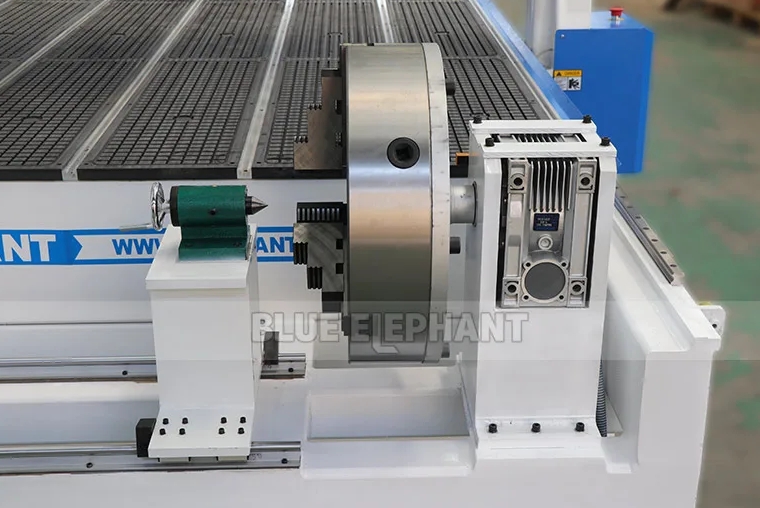

Equipped with the rotary device, it can also process various cylindrical work pieces, such as table legs and stair handrails, etc.

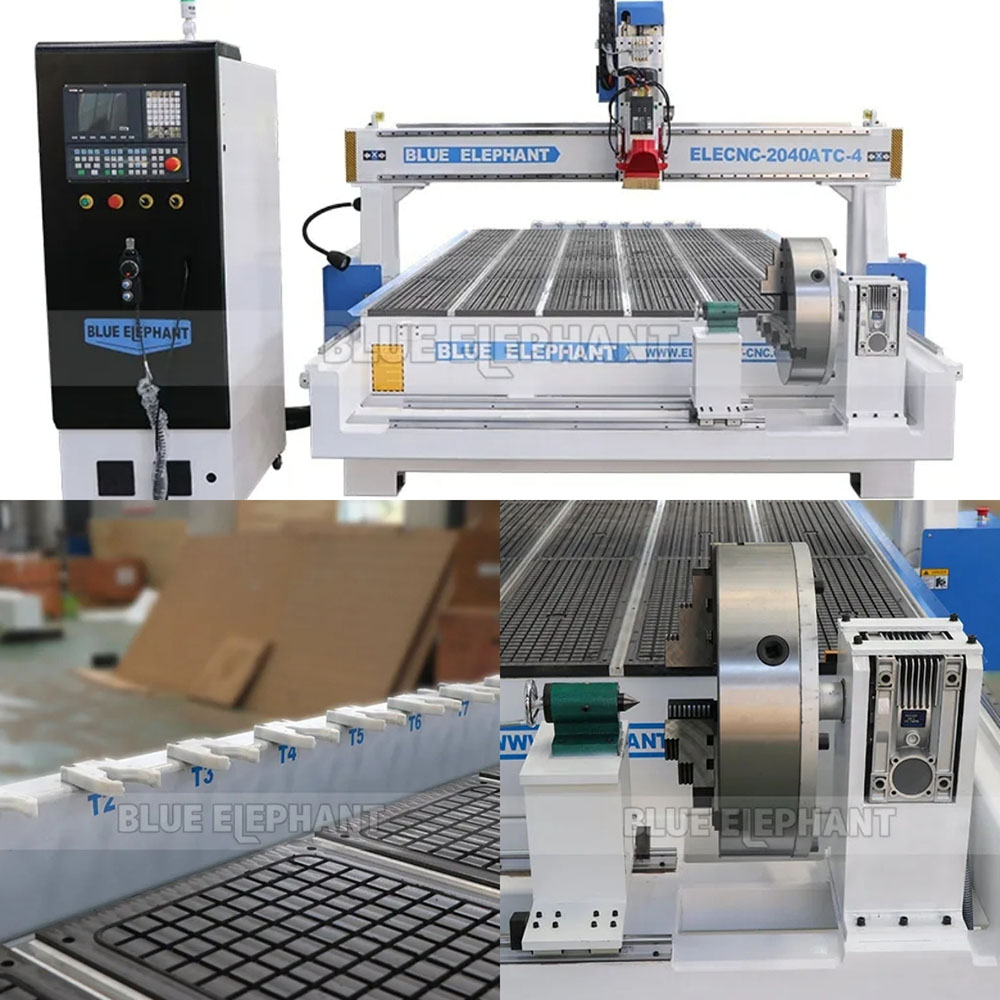

3 Axis CNC Router with ATC Spindle and Front Lathe for Wood Furniture

Parameters:

Serial Number	S20190930W
Model	ELECNC-2040 ATC with Front Lathe
Working area	20004000400mm
Spindle	9.6kw Italy HSD ATC air cooling spindle
Spindle speed	24000RPM
Inverter	11.0kw Taiwan Delta inverter
Tool magazine	Linear design 8 positions
Control system	Taiwan SYNTEC 6MB control system
Motor and driver	850W YASKAWA servo motors and 1000 drivers
Working Table	T-slot & Vacuum working table with six zones
limit switch	Japan OMRON limit switch
Lubrication system	1.5L Automatic lubrication system
Voltage	380V, 3phase, 50/60HZ
Vacuum pump	7.5kw water circulation vacuum pump
X,Y,Z Transmission	Taiwan TBI ball screw for Z axisHelical rack gear for X,Y axis
X,Y,Z Rail	25mm Taiwan PMI/ Sweden ABBA Linear guide
Frame structure	Heavy duty bed more thicker
Cables	Shanghai Cardiff cables
Dust collector	1.5kw new design double bags dust collector
Tool sensor	Auto tool sensor calibration
Software Compatibility	Artcam software
