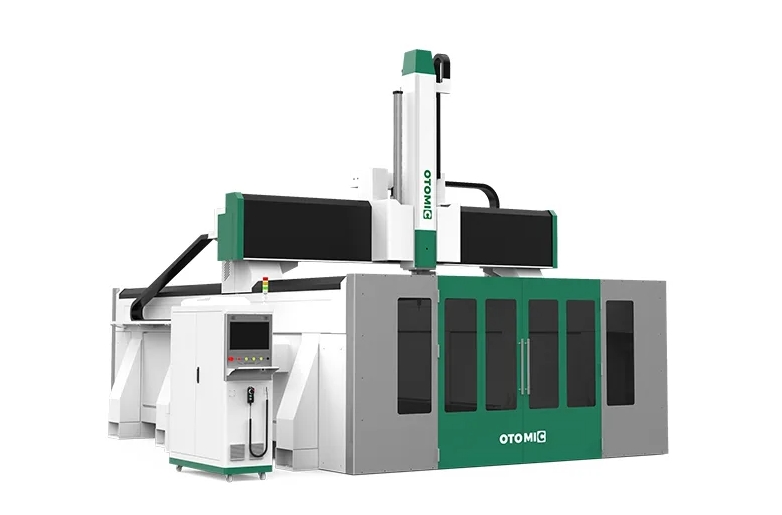

Heavy Duty ATC 5 Axis CNC Machine Center for 3D Mold/Model Carving

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Description

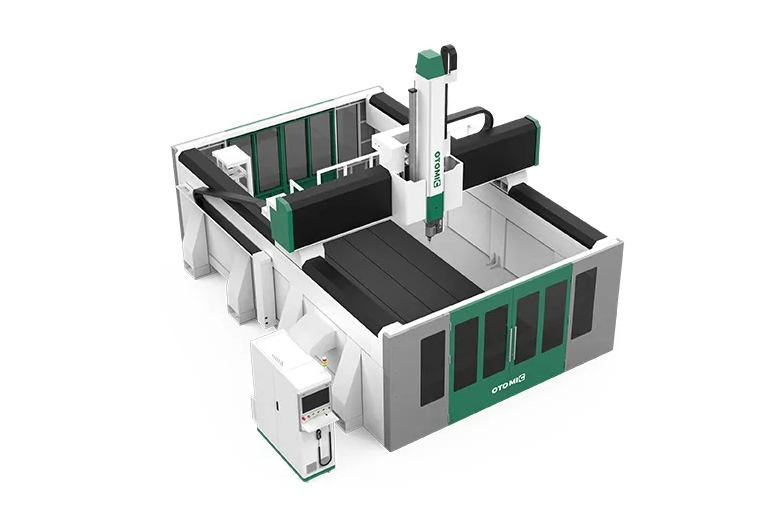

This is a new designed 5-axis CNC machining center with a heavy duty. It is equipped with a large working table of 3000*5000mm, which can easily process big and thick non-metal or metal plates. Moreover, with beautiful apperance and practical functions, it is sold hot at home and abroad.

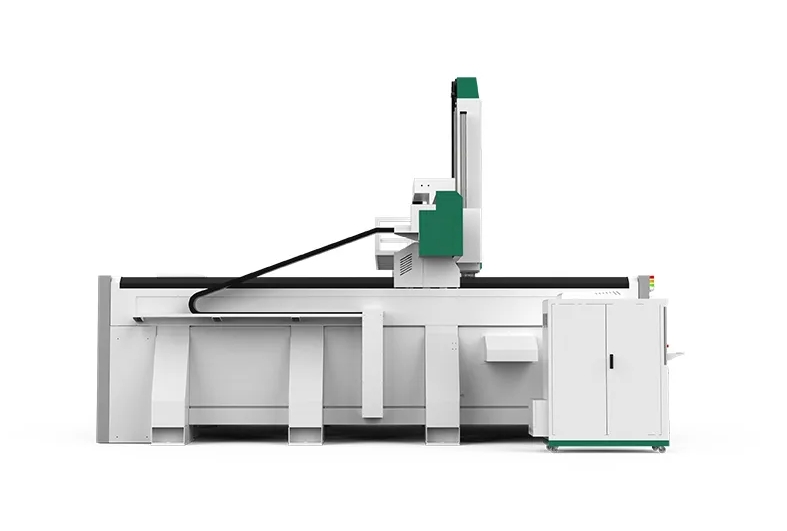

Heavy Duty ATC 5 Axis CNC Machine Center for 3D Mold/Model Carving

FEATURES

With heavy duty body and high Z axis, it can better ensure the whole cutting and engraving process stable and accurate.
Use 5+4 Italy vertical drills, it can drill holes fast at different sides of the board.
Large-size vacuum& T-slot worktable, it is convenient to fix and process the metarial, which will greatly increase efficiency.

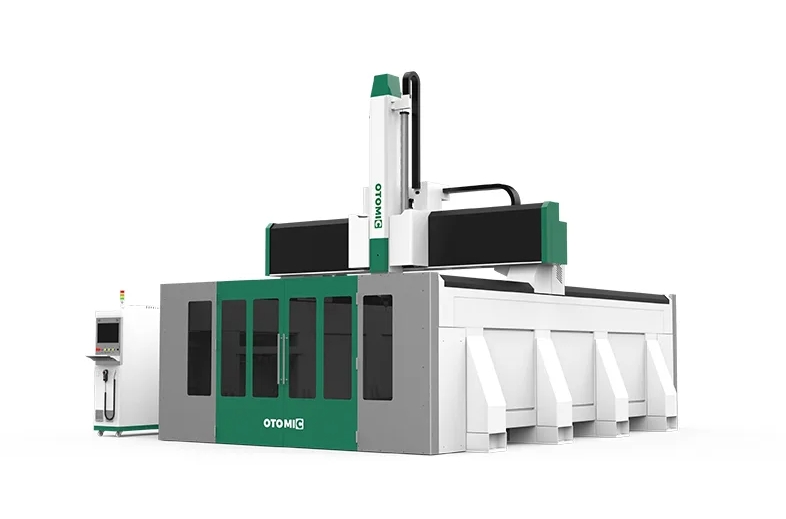

Heavy Duty ATC 5 Axis CNC Machine Center for 3D Mold/Model Carving

Parameter

Model	ELECNC-3050
X,Y axis travel	3000x5000mm, option: 13002500mm; 15003000mm; 2000*3000mm,etc
Z axis travel	1100mm
Spindle type	10KW Germany DMASS spindle
Inverter type	15kw
Drilling bank	Taiwan or Italy 5+4 verticaldrills
Tool magazine	Carousel type auto tool changer
Tool holder with collet	HSK tool holder
Control system	Syntec 610MA-E5
Driving system	1800W Japan YASKAWA servo motor and driver
Reducer	Japan SHIMPO reducer
Machinestructure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	5 pieces (X2, Y3)
Linear guide	Taiwan#35 linear guide with dust proof
Transmission	X,Y axis: Taiwan / Germany helical rack and pinion Z axis:Taiwan TBI high precision ball screw
Lubrication system	Semi-auto lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Customized professional 5 axis software
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	380V 3PH 50HZ/ 60HZ
