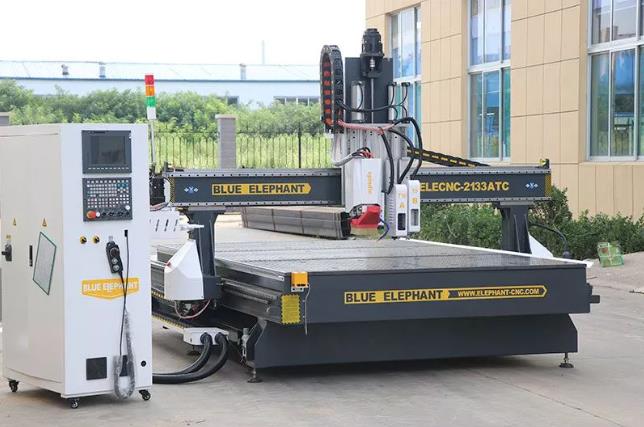

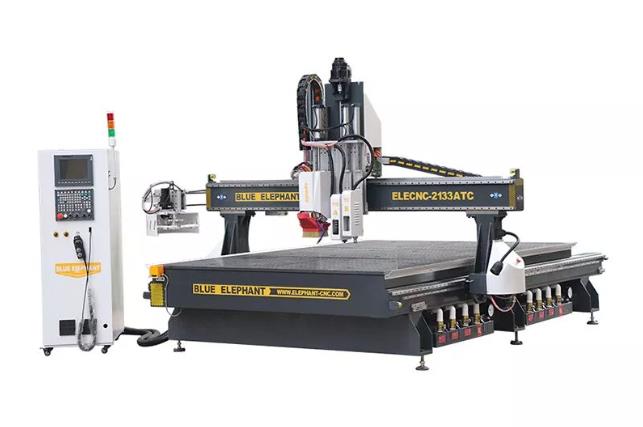

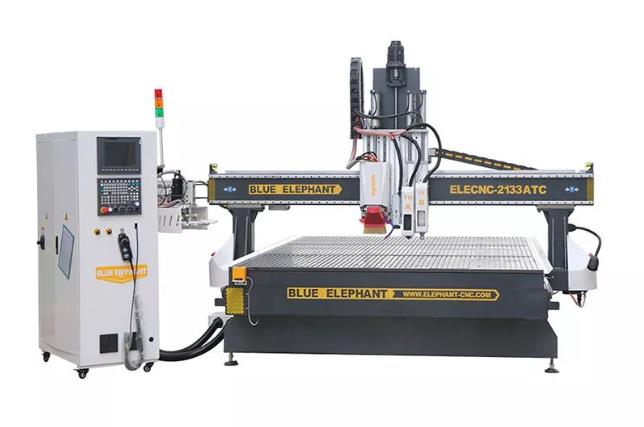

CCD ATC CNC Cutting

Brand : Blue Elephant

Model : ELECNC-2133ATC

Category : CCD Camera Patrol CNC Router

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Free professional machine operation training.

Supply Ability : 200 Sets per Month

Contact Now E-Mail Telephone WhatsApp

Product Details

Description
This computer can no longer solely patrol reduce however additionally engrave, drill and mill, so it is appropriate for different processing needs. Moreover, this desktop is outfitted with carousel device magazines, and 8pcs spindles can be routinely switched in accordance to the machining requirements, therefore extensively enhancing the user's machining efficiency.

Model	ELECNC2133ATC
X,Y axis travel	2100x3300mm,option: 15003000mm, 21003000mm, 2100*4000mm,etc.
Z axis travel	200mm, option: 300mm, 400mm, 500mm, 600mm, etc.
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw
Tool magazine	Carousel type auto tool changer Option: Linear type auto tool changel
Control system	Taiwan SYNTEC /LNC controller option: Ncstudio
Driving system	1kw Japan YASKAWA AC servo driver and 850w AC servo motor4 sets. option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration

CCD ATC CNC Cutting

Features
1. Using the new era CCD, it can scan the sample edges rapidly and efficiently, which efficiently improves the processing efficiency.
2. Equipped with HSD air cooling spindle, it has the facets of excessive energy and excessive precision.
3. Manufactured with the massive rectangular tube bed, it is greater steady and assured accuracy.
4. Adopting Syntec 11MB manipulate system, it is handy and convenient to operate.
