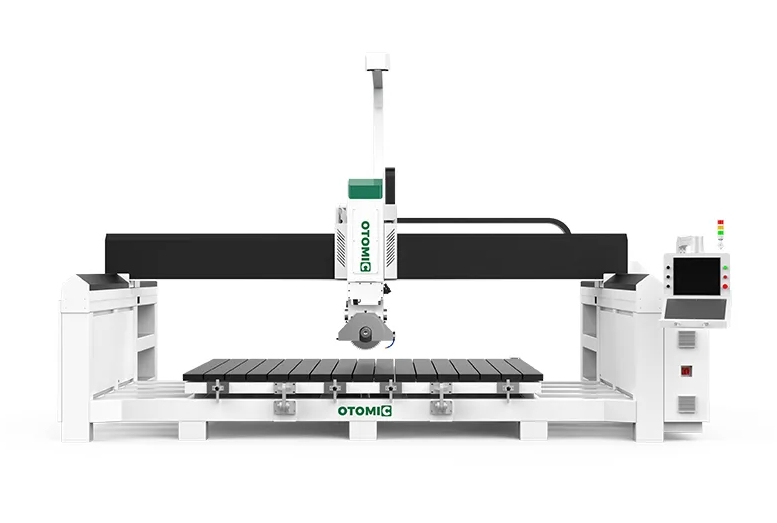

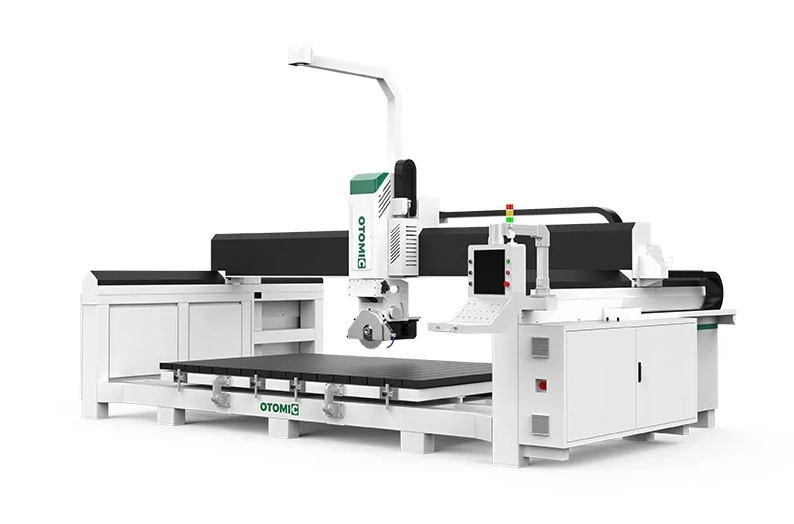

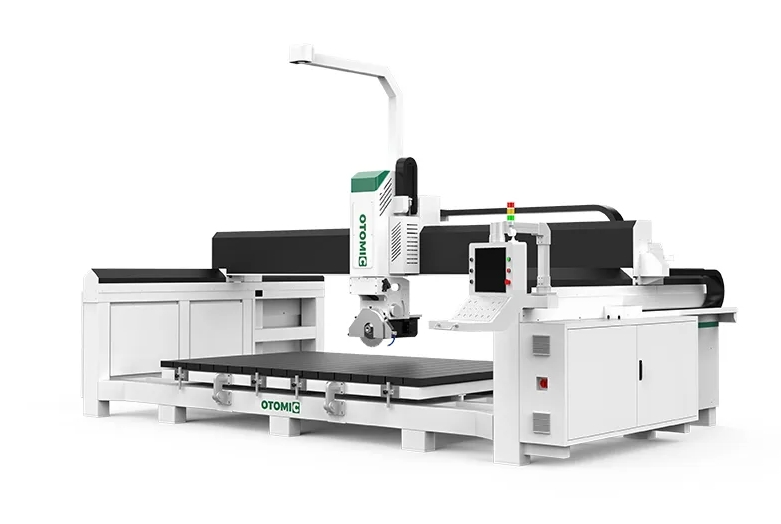

4 Axis CNC Granite Saw Bridge Cutting Machine

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Description

Blue Elephant 4 axis CNC bridge saw for granite and marble cutting is on hot sale. It has the features of high precision, good processing effect, stable operation, high automation, etc. You can use it for making sculptures, tombstones, countertops and other stone products.

Features

1. The bridge saw c axis can rotate 45°to realize beveling.
2. Optional camera is good for automatic typesetting and positioning.
3. Install Blue Elephant customized control system, it is easy to operate and has high intelligence.

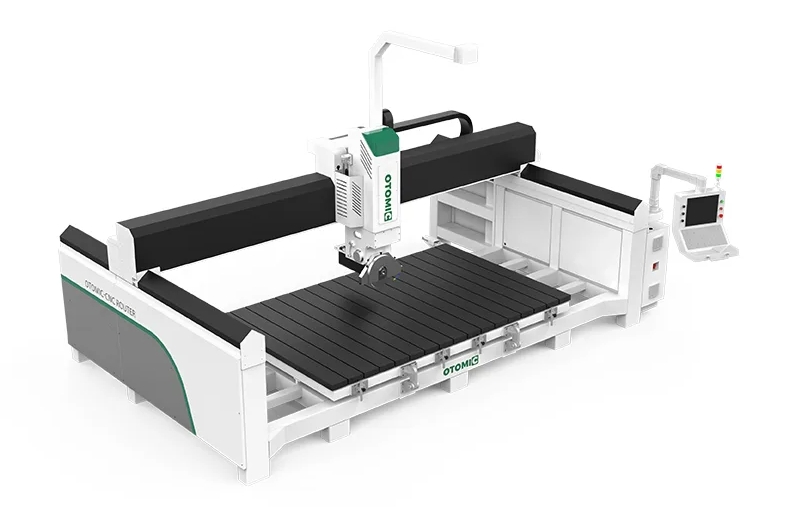

4 Axis CNC Granite Saw Bridge Cutting Machine

PARAMETER

ES4-3220 4 Axis CNC Bridge Saw
Travel	3 axis	32002000200mm
C axis	±360°
A axis	0/45°
Speed	X axis	30mmin
Y axis	30mmin
Z axis	10mmin
Servo motor	X axis、Y axis	2KW HANYU absolute value servo motor
Z axis	2KW HANYU absolute value servo motor（with brake）
C axis	1KW HANYU absolute value servo motor
Guide	Y axis	Taiwan 30#
X axis	Taiwan 30#
Z axis	Taiwan 30#
Rack	X axis、Y axis	2M
Worktable	Structure	squared timber
Size	3200×2000mm
Flip angle	0-85°
Reverse weight	800KG
Saw blade	Size	360mm
Maximum thickness	60mm
Screw	Z axis	3210
Reducer	X/Y axis SHIMPO reducer
Saw blade motor	15KW Saw blade motor (rated: 2930r/min)
Inverter	18.5KW Fuling inverter
Controller	Blue Elephant customized control system（built-in CAM software）
Low-voltage apparatus	Schneider
Air Pressure	0.6-0.8Mpa
Voltage	380V/3P/50HZ
Machine size	5.85m×4.5m×3.6m
Machine weight	3.5t
