Linear ATC CNC Router for Handleless Finger Edge Pull Slot Boring

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Video

DESCRIPTION

Two working platform can realize automatic loading and unloading operation, no idle time, and it can increase capacity by 30%-40%.

FEATURES

Equipped with double working platform, it can realize automatic loading and unloading, saving time and improving efficiency.
All the parameters can be customized according to your processing requirements.
With complete function, it can realize the whole board cutting processing and whole board perforation processing.
This machine can realize automatic tool change according to customer needs.

PARAMETER

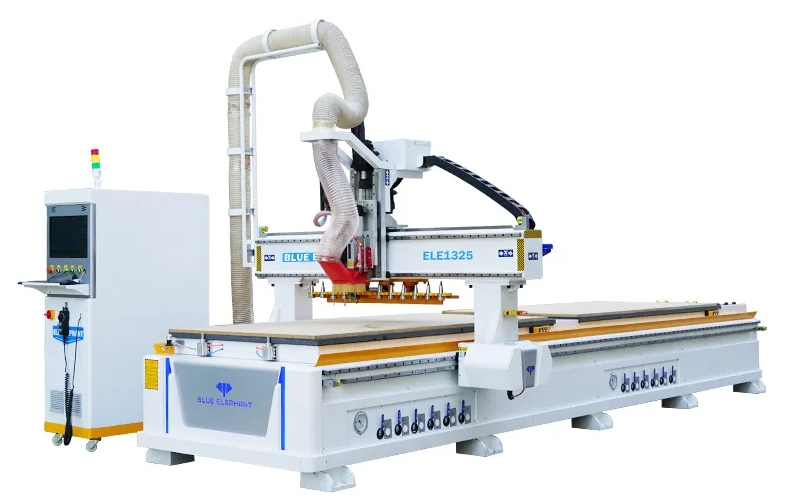

Model	ELECNC 1325 ATC nesting machine with double platform
X,Y axis travel	1300x2500mm, option: 15003000mm; 20003000mm; 2100*4000mm, etc
Z axis travel	200mm
Spindle type	9kw ATC HQD air cooling spindle, ER32
Inverter type	11kw Fuling inverter

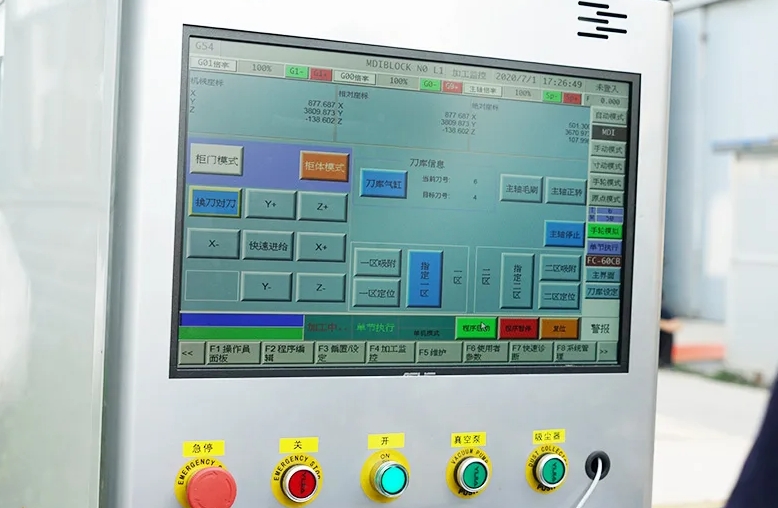

Control system	Taiwan LNC 2200 control system with MPG , keyboard and mouse
Driving system	Leadshine 1.3KW servo motor and drivers
Reducer	Japan Shimpo reducer
Machine structure	Heavy duty welded steel frame
Work table	Full-page vacuum working table, double working table
Linear guide	Taiwan linear guide
Transmission	X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L Auto lubrication system

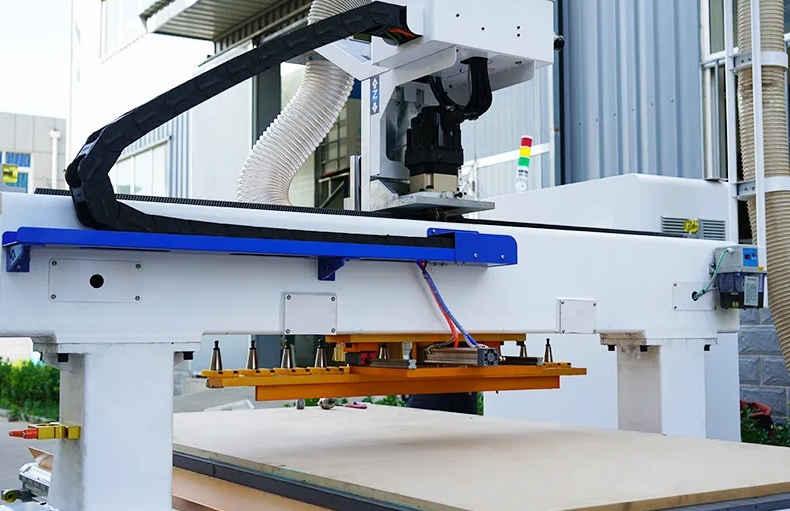

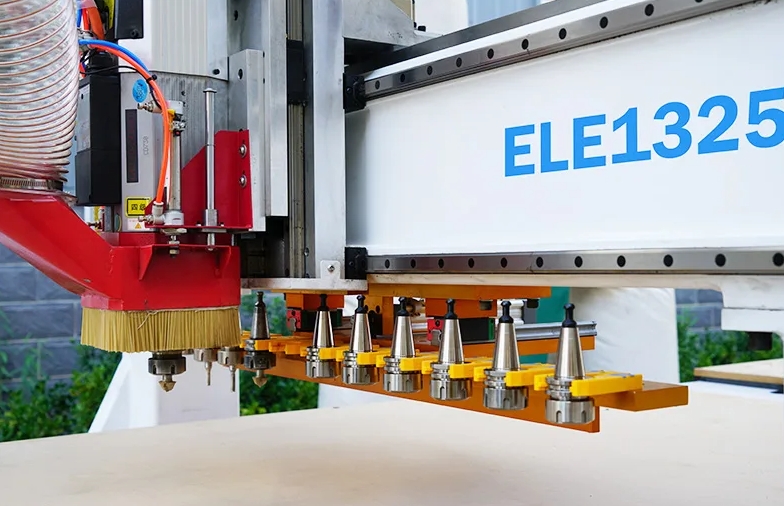

Tool magazine	12pcs linear tool magazine, under the gantry

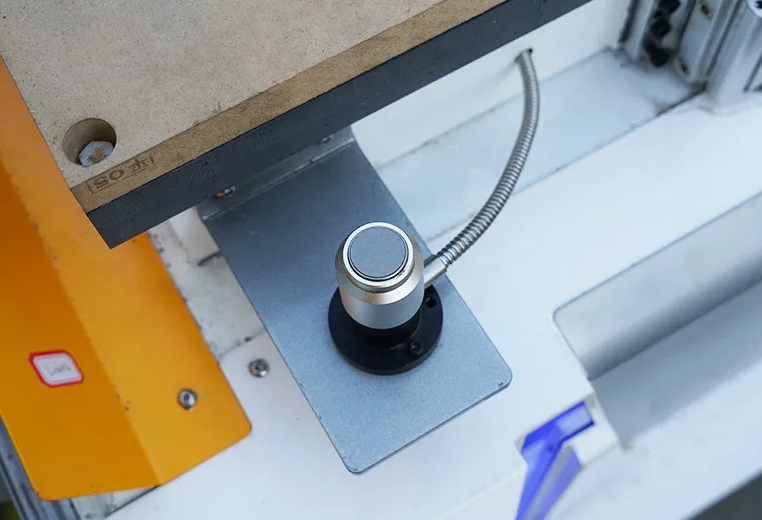

Tool calibration	Autotool sensor
Cables	Germany Igus cables with CE, UL certificate
Compatible software	Artcam, Hisoon, etc
Command language	G Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
Working accuracy	±0.03mm
Working voltage	220V 3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
