7x10ft Atc CNC Machine with Oscillating Drag Knives

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Description

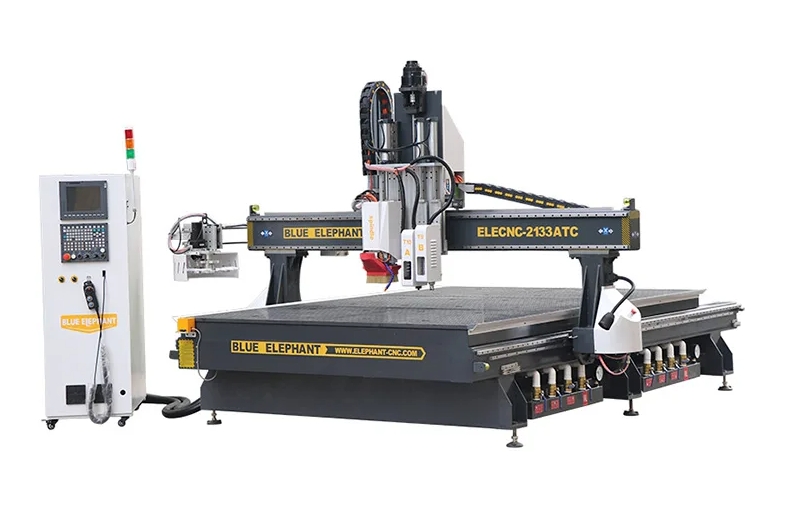

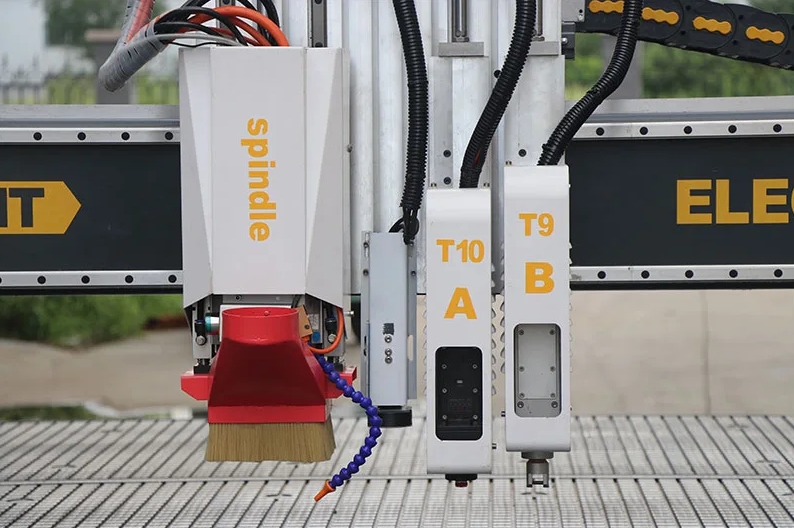

The machine with oscillating knife adopts a carousel type auto tool changer, and it has the characteristics of fast tool change speed and small guide rail wear. Equipped with oscillating knives, it can process soft materials such as PVC, KT, leather, and fabric.

Videos

Features

Operation handler of Syntec 11MB control system is easy to control and operate.
The thickened square tube frame is heat-treated and vibration-aged to ensure stable operation.
The machine can realize automatic tool change, significantly reducing shutdown time and improving work efficiency.

Parameters

Model	ELECNC2133ATC
X,Y axis travel	2100x3300mm, Option: 15003000mm, 21003000mm, 2100*4000mm, etc.
Z axis travel	200mm, Option: 300mm, 400mm, 500mm, 600mm,etc.
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw
Drilling bank	Taiwan or Italy 5+4 vertical drills

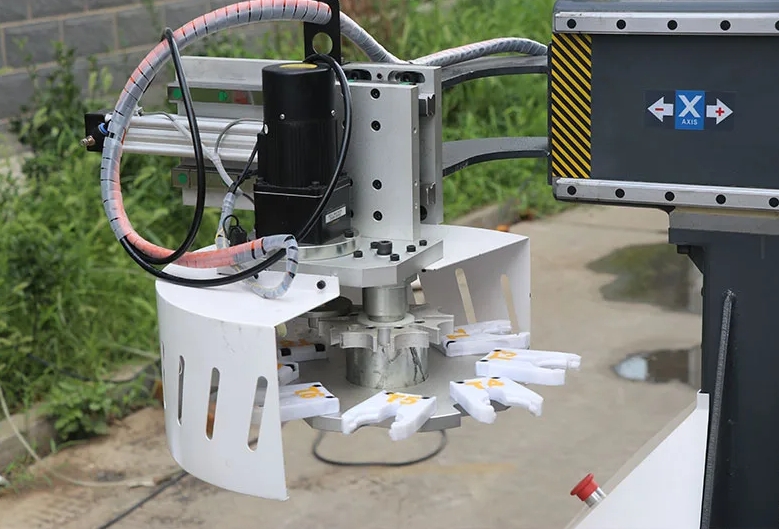

Tool magazine	Linear type auto tool changer Option: Carousel type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4,φ6,1/8,1/2
Control system	Taiwan SYNTEC/LNC controller, Option: Ncstudio

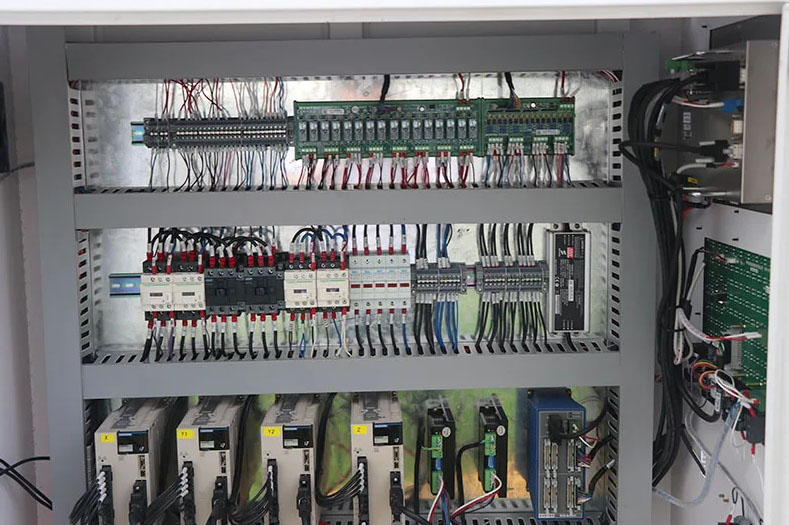

Driving system	1kw Japan YASKAWA AC servo driverand 850w AC servo motor, 4 sets. Option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	5 pieces(X2,Y3)
Linear guide	Taiwan linear guide with dust proof
Transmission	X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, U cancam, Aspire, etc.
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
