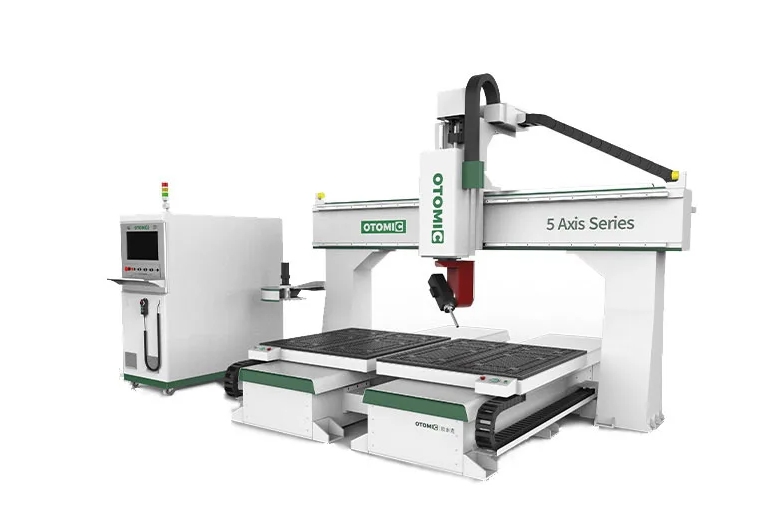

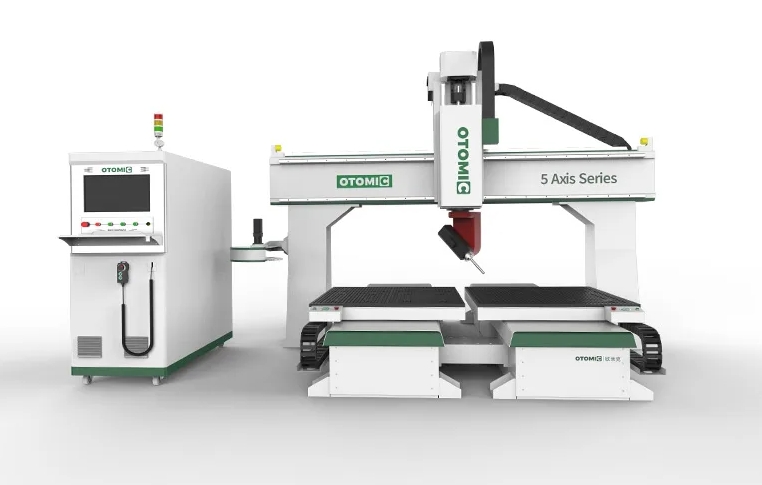

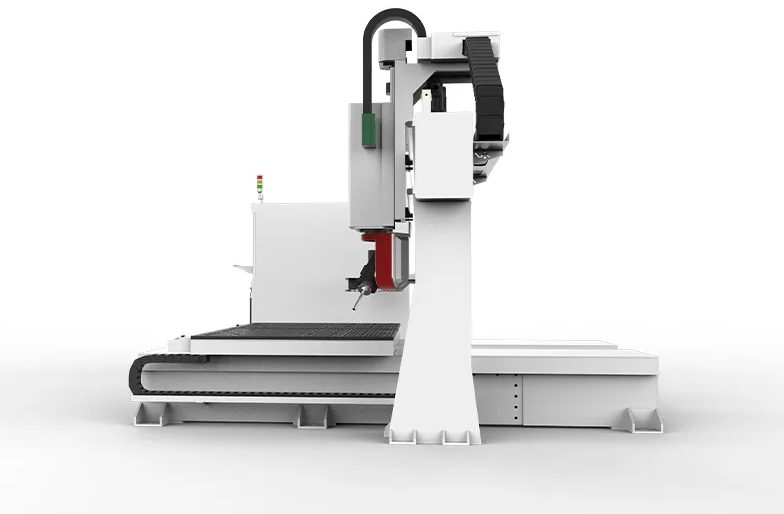

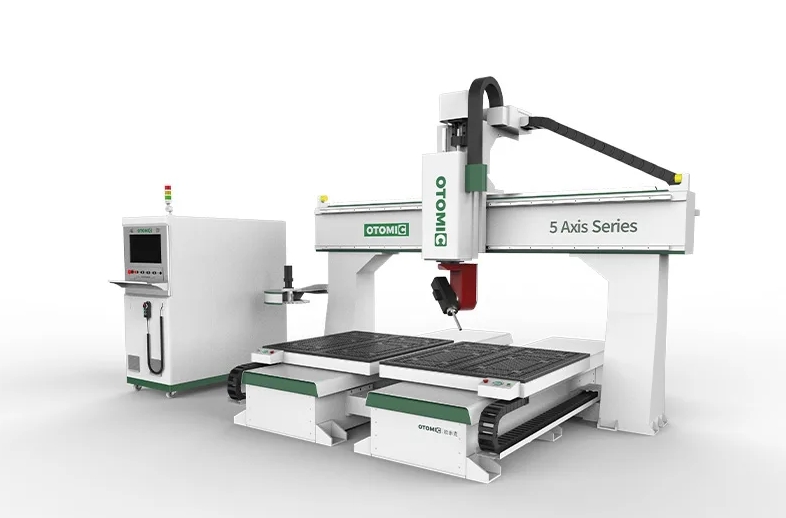

ATC 5 Axis CNC Router Machine with Two Working Tables

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Video

Description

This new type 5-axis CNC machining center is designed with double vacuum working tables, which can work at the same time to furcilitate the material processing. And with five axes, it is very suitable for 3D wood cutting, 3D foam mold making, metal mold building, etc.

FEATURES

With two movable working tables, it can process at one table while unloading at the other one to improve efficiency and save time.
Adopts a carousel automatic tool changer, it can change tools with different functions very fast and accurately.
Every components can be customized according to your requirements. And all components are from international and world-class CNC machine kit manufacturers.

Parameter

Model	Omic 1212-2F
X,Y axis travel	1200X1200mm
Z axis travel	500mm-700mm
Spindle type	10kw-12kw water cooling ATC spindle，24000RPM
Inverter type	15kw Taiwan Delta inverter
Tool magazine	Carousel tool changer with 8/12pcs magazine
Tool holder with collet	HSK F63 tool holder
Control system	Syntec 610-E5 5 axis control system with RTCP functions
Driving system	X, Zaxis 1.3kw Y axis 1.8kw Japan Yaskawa servo motors
Reducer	Japan Shimpo
Machine structure	Heavy duty body with quenching treatment
Work table	Removable working table
Linear guide	X axis: Taiwan 30# Linear guide Y axis: Taiwan 30# Linear guide Z axis: Taiwan 30# Linear guide
Transmission	X axis:Taiwan Linear Grinding grade racks M2-1000 Y axis:Taiwan TBI Grinding grade screw, 4040-3100 Z axis:Taiwan TBI Grinding grade screw, 3210-1300
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Powermill software
Command language	G Code
Traveling speed	80m/min
Working speed	0-60m/min
Working voltage	380V 3PH 50HZ/ 60HZ（220V for option）
