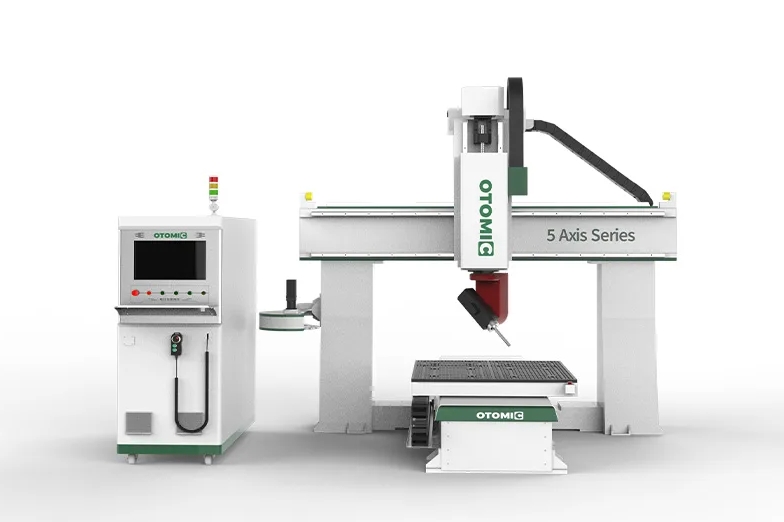

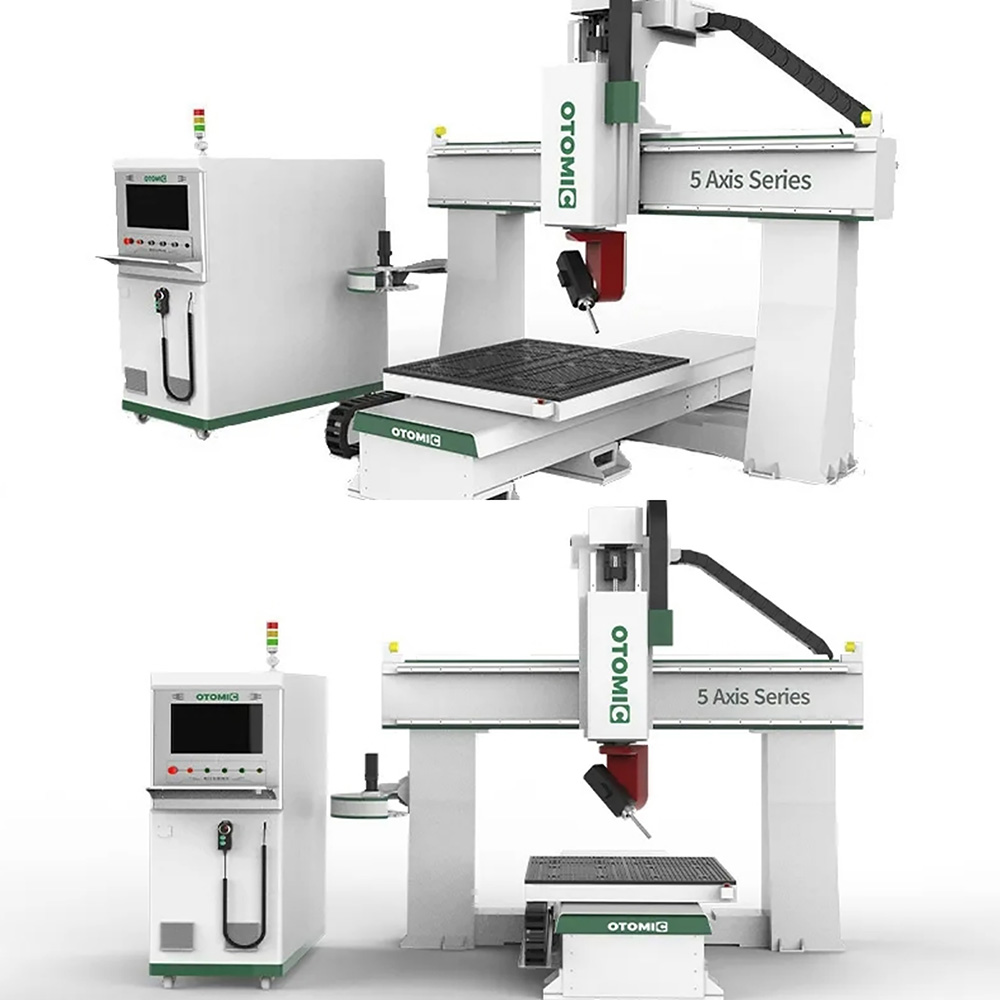

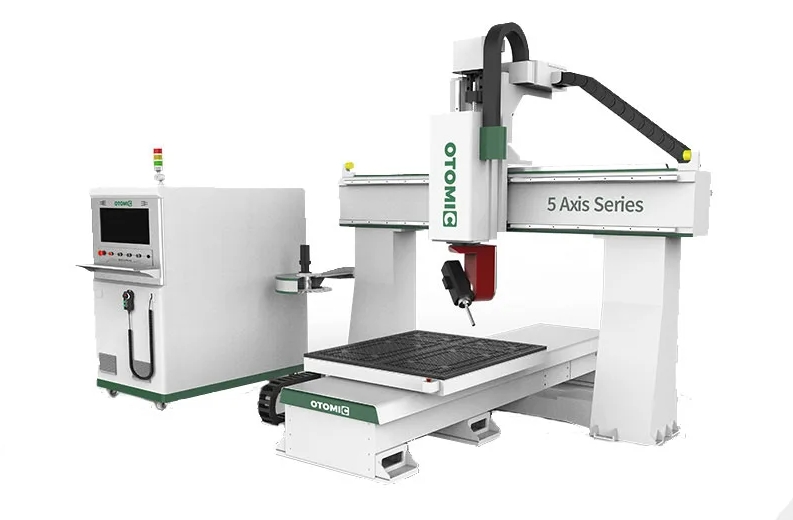

ATC 5 Axis CNC Machine Center with Single Table

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Video

Description

This is an entry-level 5 axis CNC machining center designed for beginners. And it is sold at very favorable price. In addition, it is good ant the 3D processing of wood, foam, metal, stone, acrylic, etc.

FEATURES

With small working table, it saves space and easy to move.Besides, the table can easily move forth and back during the procees to ensure that every side can be engraved.
Adopts fa carousel tool magazine, it is convenient to change tools automatically. And the working efficency is highly increased.
All parts use high-quality and famous brands, which guarantee very high precision and excellent processing effect.

Parameter

Model	Omic 1212F
X,Y axis travel	1200X1200mm
Z axis travel	500mm-700mm
Spindle type	10kw-12kw water cooling ATC spindle，24000RPM
Inverter type	15kw Taiwan Delta inverter
Tool magazine	Carousel tool changer with 8/12pcs magazine
Tool holder with collet	HSK F63 tool holder
Control system	Syntec 610-E5 5 axis control system with RTCP functions
Driving system	X, Zaxis 1.3kw Y axis 1.8kw Japan Yaskawa servo motors
Reducer	Japan Shimpo
Machine structure	Heavy duty body with quenching treatment
Work table	Removable working table
Linear guide	X axis: Taiwan 30# Linear guide Y axis: Taiwan 30# Linear guide Z axis: Taiwan 30# Linear guide
Transmission	X axis:Taiwan Linear Grinding grade racks M2-1000 Y axis:Taiwan TBI Grinding grade screw, 4040-3100 Z axis:Taiwan TBI Grinding grade screw, 3210-1300
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Powermill software
Command language	G Code
Traveling speed	80m/min
Working speed	0-60m/min
Working voltage	380V 3PH 50HZ/ 60HZ（220V for option）
