4 Axis CNC Router

Model : ELECNC2646ATC-4A

Category : 4 Axis CNC Router

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Free professional machine operation training.

Supply Ability : 200 Sets per Month

Contact Now

Product Details

Description
The 4-axis CNC router is a variety of timber engraving tools specifically designed for the processing of 3D timber workpieces, such as portrait Buddha statues, Roman columns and so on. Also, this engraving computing device has an computerized device alternate function. It adopts a linear computerized device changer for device shifting.
Features
1. ATC System for speedy device altering makes excessive manufacturing efficiency. two The vacuum suction desk is used to shop time and restore the workpiece extra firmly, which is appropriate for the processing of timber door processing and giant plates; three The mattress of this computer adopts a new design, which is greater handy to transport. four four Axis CNC router can swing spindle to make the complicated engraving and carving in wood.

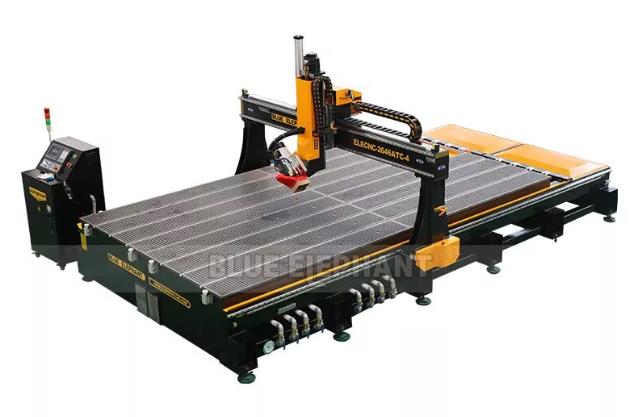

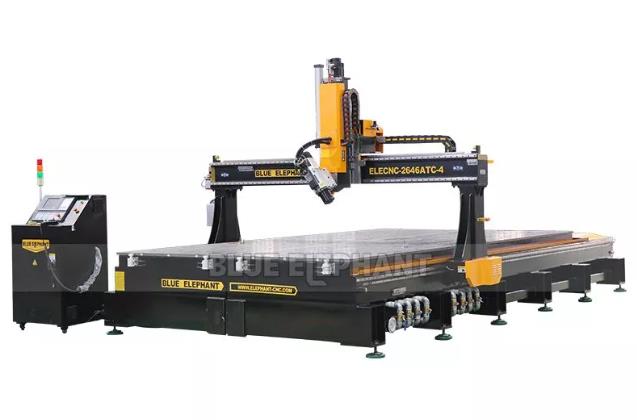

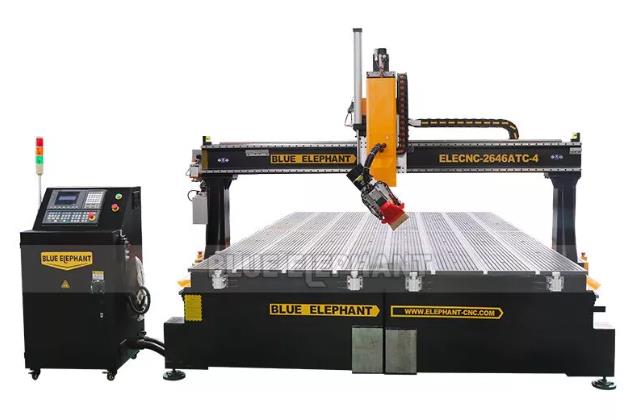

4 Axis CNC Router

Model	ELECNC2646ATC-4A
X,Y axis travel	2600x4600mm, option: 13002500mm; 20003000mm; 2000*4000mm, etc
Z axis travel	500mm, option: 400mm, 600mm, etc
Spindle type	9kw ATC air cooling spindle, ER32
Inverter type	11kw
Rotary device	Option:Rotary device
Tool magazine	Linear type auto tool changer
Tool holder with collet	ER32 collet， φ4, φ6, 1/8, 1/2
Control system	Taiwan Syntec controller, option，Taiwan LNC
Driving system	1300W Leadshine servo motor and servo drivers. Option: Japan Yaskawa servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot work table
Positioning cylinder	Optional: 7pieces (X2, Y3)
Linear guide	Taiwan linear guide
Transmission	X,Y axis， Taiwan / Germany Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Manual tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language	G Code & M Code
Traveling speed	40m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.07mm
Working air pressure	0.8MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Application
INDUSTRIES four Axis CNC router has an swing spindle. It can alternate the route robotically all through the machining manner barring stopping. The four Axis CNC router has a broad vary of functions in furniture, advertising, mold, decoration, development and different fields and industries. In phrases of functions, it can cut, engrave, drill, mill and groove. In regard to materials, four Axisrouter can procedure a number timber materials, plastics, stone, tender metals and composites.

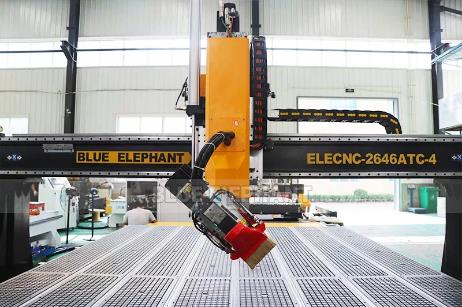

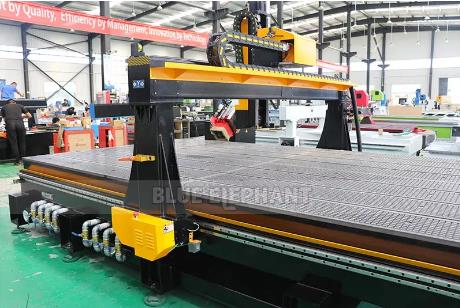

ATC spindle T-slot& Vacuum table

Material
Wood: herbal wood, plywood, smooth wood, challenging wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard

Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA

Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, herbal and synthetic stones

Soft metal: aluminum, brass, copper, slight metal

Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite

Vacuum pump	Water circulation Ring blower Rotary vane,oil-free: Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type
Air compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc

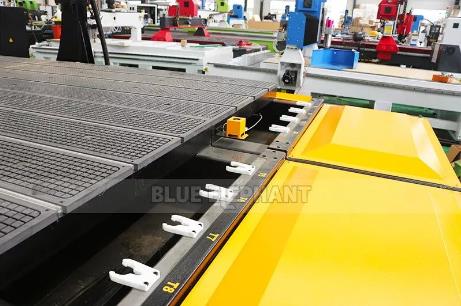

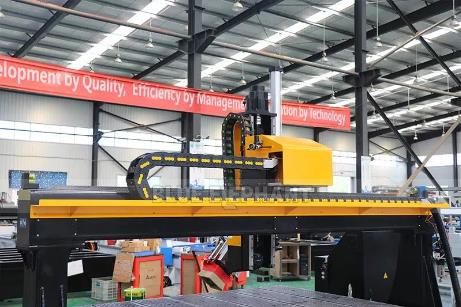

Linear tool changer Towline

Frequent asked questions
1. For four axis machine,supply which software?

We free provide Powermill/UG software program with put up processor. Post procedure has RTCP function, which capability it has a reducing device compensation setting.

2. What is the distinction between three axis and four axis CNC machine?

three axis: its spindle is vertical, which is used for make flat working and flat 3D engraving.

four axis: its spindle can rotate 0-180 degree, which can be used for make 3D working for mould.

3. I desire to comprehend which kind oil do I want to lubricate?

ISO VG32 or 5w30.
