4 Axis CNC Bridge Saw with Spindle, Camera & Infrared Ray Head

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

DESCRIPTION

The “4+1” 4axis bridge cutting machine is equipped with an infrared ray head, 5.5kw JST water cooling spindle, camera, flip table and vacuum sucker. It is widely used in construction material fabricate, stone processing plants and stone decoration industries, such as marble granite cutting, polishing, edge profiling, hole drilling, engraving, etc.

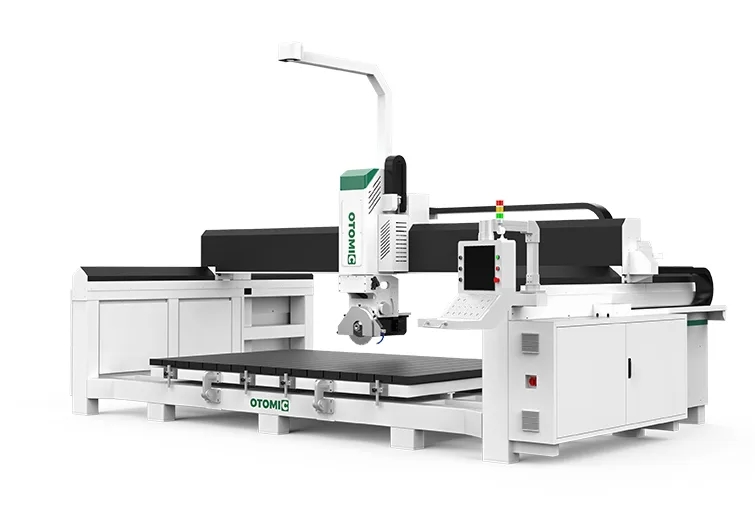

4 Axis CNC Bridge Saw with Spindle, Camera & Infrared Ray Head

FEATURES

1. There 5.5kw JST water cooling spindle can ensure the stability under long-term and high-load operation.
2. The bridge saw table can turn over 85 degrees to load and unload stone slabs.
3. It has the features of smooth operation, high precision and fast speed.
4. The infrared head can realize distance measurement, obstacle detection, motion detection and other functions.

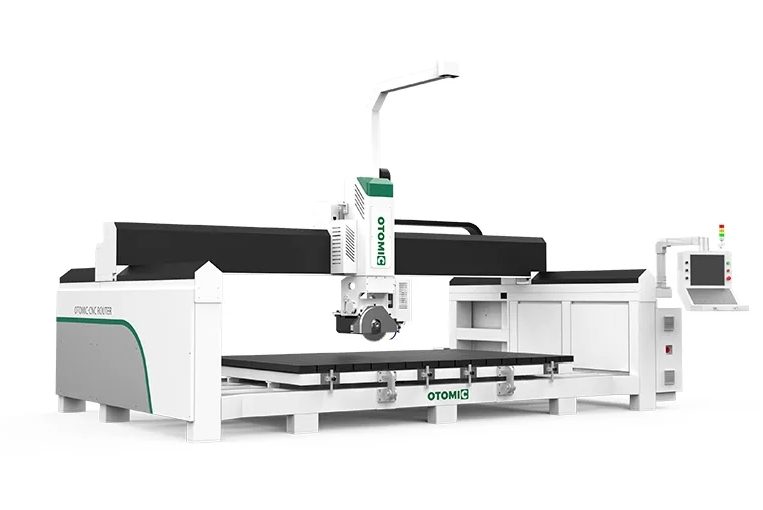

4 Axis CNC Bridge Saw with Spindle, Camera & Infrared Ray Head

PARAMETER

ES4-3220 4 Axis CNC Bridge Saw
Travel	3 axis	32002000200mm
C axis	±360°
A axis	0/45°
Speed	X axis	30mmin
Y axis	30mmin
Z axis	10mmin
Servo motor	X axis、Y axis	2KW HANYU absolute value servo motor
Z axis	2KW HANYU absolute value servo motor（with brake）
C axis	1KW HANYU absolute value servo motor
Guide	Y axis	Taiwan 30#
X axis	Taiwan 30#
Z axis	Taiwan 30#
Rack	X axis、Y axis	2M
Worktable	Structure	squared timber
Size	3200×2000mm
Flip angle	0-85°
Reverse weight	800KG
Saw blade	Size	360mm
Maximum thickness	60mm
Screw	Z axis	3210
Reducer	X/Y axis SHIMPO reducer
Saw blade motor	15KW Saw blade motor (2930r/min)
Inverter	18.5KW Fuling inverter
Controller	Blue Elephant customized control system（CAM software）
Low-voltage apparatus	Schneider
Air Pressure	0.6-0.8Mpa
Voltage	380V/3P/50HZ
Machine size	5.85m×4.5m×3.6m
Machine weight	3.5t
